Factory Price Stone Machinery Automatic Stone Cutting Machine CNC Stone Bridge Saw for Middle Marble Block

Product Description

Factory Price Stone Machinery Automatic Stone Cutting Machine Stone Bridge Saw for Middle Marble Block
Product Description

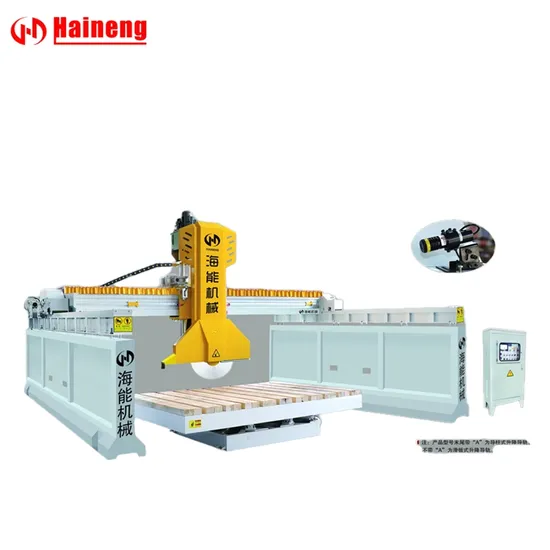

Middle Block Stone Bridge Saw (Conventional/Heavy) adopts microcomputer control and wireless remote control, which makes the man-machine dialogue flexible.
The main control components are all international famous brand components. The cross beam and the head are made of enlarged and heavy-duty structure. The oil-immersed double V-beam rail is equipped with high-power cutting main motor. The horizontal cutting cutter adopts stepless frequency conversion and flexible speed regulation. The knife uses double-mount rails and high-precision encoder counting to ensure smooth and stable accuracy of the machine.
The table is automatically rotated by 0-90 degree, and it can be used for border stone, gravestone, gravestone and other process-like rectangular thick materials and polygon thick materials(table rotation 0-45-90 degree is optional), especially suitable for high value, high precision and high efficiency demand users!
Product Parameters

Middle Block Stone Bridge Saw (conventional/heavy)
Type	unit	HZQ-1200A	HZQ-1400A	HZQ-1600A	HZQ-1800A
Blade diameter	mm	Φ600-Φ1200	Φ800-Φ1400	Φ1000-Φ1600	Φ1200-Φ1800
Max. Vertical stroke	mm	820	820	950	950
Worktable size (L×W)	mm	3000×2000	3000×2000	3000×2000	3000×2000
Workbench rotating degree	n°	0°-90°/360°	0°-90°/360°	0°-90°/360°	0°-90°/360°
Power of main motor	kw	22	22	30	30
Total power	kw	27.2	27.2	38.2	38.2
Water consumption	m³/h	4	4	5	5
Dimension (L×W×H)	mm	6400×4800×4400	6400×4800×4500	6200×4800×5100	6500×4800×5300
Total weight	kg	6100	6100	7100	7300

Processing
Packaging & Shipping
Partial Control Element
Company Profile

CertificationsExhibitionMarketing SystemCompany information
After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries.
