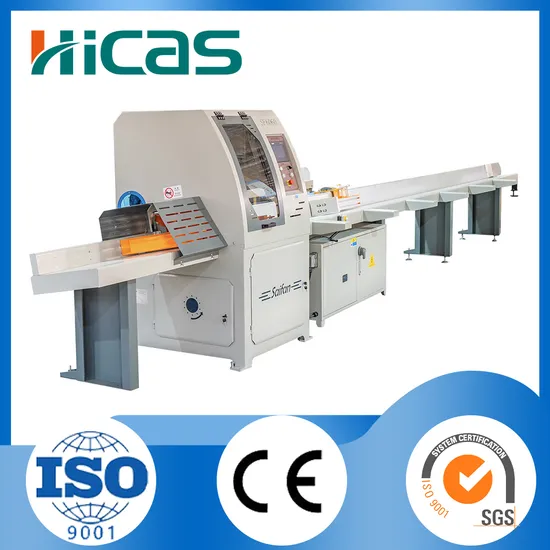

Custom Automatic Industrial Wood Pallet Chop Saw

Product Description

Custom Automatic Industrial Wood Pallet Chop Saw Product Description
Feature
This saw is a cross cut saw, cutting continuously and automatically with high precision and high efficiency. Can pre-set and edit and save cutting plans. It contains cutting program, input parameters from the Siemens PLC touch screen, have two cutting modes, one is Manual measure mode, measure raw material length by hand then input into machine, and then input max. 8 different cutting length and quantity.
Another mode is Auto measure mode, machine will auto measure the raw material length, and can input only 1 length and quantity.
Can automatic show the problem alarm words in screen, and with our operation guidance videos, worker can easily understand the problem and release it.
Product Parameters

Name	Automatic wood pallet cut off saw machine
Model	SF6045	SF6060
Saw blade diameter	450mm	600mm
Feeding table length	2m/ 4m/ 6m
Max. Feeding length	2.1m/4.1m/6.1m
Out-feeding table length	1.2m
Cutting thickness	10-120mm		10-140mm
Cutting width	30- 200mm		30-300mm
Cutting section Thickness*width	Max. 120*150mm Max. 100*200mm		Max.150*280mm Max. 140*300mm
Feeding speed	5-30m/min
Saw spindle diameter	30mm		30mm
Cutter spindle rotation speed	3000rpm		3150rpm
Servo drive motor power	0.75kw		1kw
Cutting motor power	7.5kw		11kw
Total power	8.5kw		12.5kw
Voltage	380v 50hz 3phase
Pressing method	Cylinder, air pressure 0.5-0.7Mpa
Cutting tolerance	In +/-1mm
Machine working dimension Length*width*height	5.4m*1.2m*1.6m (2m model) 7.4m*1.2m*1.6m (4m model) 9.4m*1.2m*1.6m (6m model)
Machine weight	1200-1400kg
Dust collection port	100mm*2pc
PLC Touching screen	Siemens

Detailed Photos
Comparison with Peers
Related Products

SF6060	Automatic Cross Cut Saw	View More>>
SF6021	Double Ends Trim Saw	View More>>
SF6060S+	Cross Cut Saw & Length Sorting & Stacker	View Morce>>
SF8005	Multi-head Trim Saw	View More>>
SF7030	Wood Pallet Chamfer	View More>>
SF7013	Double Heads Notcher	View More>>
SF7011	Single Head Notcher	View More>>
SF7041	Pallet Corner Rounder	View More>>

Production Process
Company Profile
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.HICAS was established in 2011 with manufacturing center in Qingdao, covering about 20,000+ square meter.
1.Founded in 2011.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation. 7.Customer visits & feedbacks & exhibitions
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.We have many CE certifications, EPR certifications, ISO certification and product patents.
10.Our After Sale Service & Packaging & Shipping
FAQ
1. Do you offer installation?
Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 200 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer? We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like wood pallet machine, edge banding machine, sanding machine, drilling machine, saw machine, roller coater, spray painting machine, nailless plywood box machine, pallet collar machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish.
