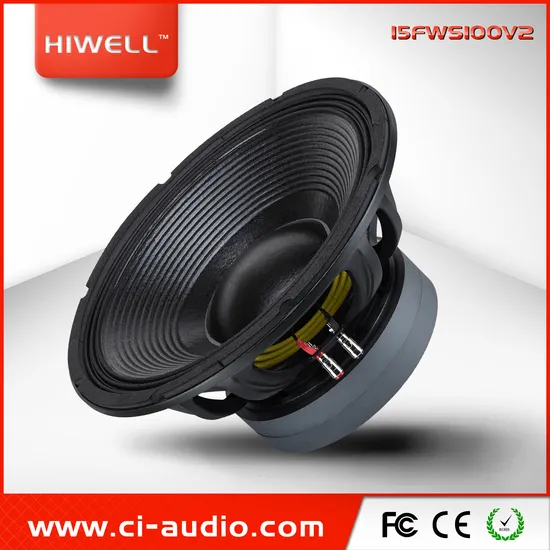

Outdoor Powered Audio Speaker 15 Inch Double Magnets Subwoofer Professional Sound System.
| US$23.00-63.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
15FWS100V2
Operation Mode
No
Speaker Material
Plastic
Application
Stage
Certification
CE, RoHS, FCC
AES Power Rating
1200 W
Program Power
2400 W
Voice Coil
4′′vc Copper in/out
Frequency Range
40 ~1000 Hz
Sensitivity
97.5 dB
Impedance
8 Ohm
Magnet
Ferrite
Chassis
Aluminium
Transport Package
Carton
Specification
410 x 410 x 230
Trademark
CI
Origin
China
HS Code
8518290000
Production Capacity
50000
Product Description
Outdoor Powered Audio Speaker 15 Inch Double Magnets Subwoofer Professional Sound System . 4 INCH COPPER VOICE COIL 97.5 dB/SPL SENSITIVITY 2400 WATT PROGRAM POWER HANDING FEM OPTIMIZED MOTOR AND SUSPENSIONS 36mm PEAK TO PEAK MAXIMUM EXCURSION OPTIMIZED COOLING SYSTEM RESONANCE FREE AND HEAVY DUTY BASKET DESIGN TRIPLE ROLL SURROUNDGENERAL SPECIFICATIONS
| Nominal diameter | mm (in.) | 389(15) |
| Nominal impedance | Ω | 8 |
| Minimum impedance | Ω | 6.7 |
| Program power (1) | W | 2400 |
| AES Power rating(2) | W | 1200 |
| Sensitivity (3) | dB | 97.5 |
| Frequency range | Hz | 40 ~ 1000 |
| Voice coil diameter | mm (in.) | 100(4) |
| Chassis material | Aluminium | |
| Magnet material | Ferrite | |
| Magnet dimensions (ODxIDxh) | mm | 220 x 110 x 25 2pcs |
| Coil material | SV | |
| Former material | Glass Fiber | |
| Xmax(4) | mm | 12.5 |
| Xmech(5) | mm | 18 |
| Gap height | mm | 10 |
| Voice coil Wingding height | mm | 30 |
SMALL SIGNAL PARAMETERS
| DC resistance | Re | Ohm | 6 |
| Resonance frequency | Fs | Hz | 40 |
| Moving mass | Mms | g | 183 |
| Compliance | Cms | mm/N | 0.10 |
| Force factor | BL | N/A | 28.3 |
| Mechanical Q-factor | Qms | 6.61 | |
| Electrical Q-factor | Qes | 0.4 | |
| Total Q-factor | Qts | 0.37 | |
| Equivalent air volume | Vas | I | 121 |
| Voice coil Inductance | Le | mH | 1.8 |
| Diaphragm area | Sd | cm² | 880 |
| Reference efficiency | Eta 0 | % | 2.5 |
SHIPPING INFORMATION
| Net weight | Kg | 15 |
| Multipack size (1) (W x D x H) | mm | 410 x 410 x 230 |
| Multipack weight | Kg | 16.2 |
Quality Assurance
Since the raw material sent in untill the speaker sent out, every aspect of them will be fully checked.
We have many advanced test equipments to measure the quality of products. No defectives will be send out.
Our company have a nice quality control managing system(QC) that have strict management of products and staffs.
FAQ
1.Q: Are you a factory or trading company?
A: We are a manufacturer with our own factory ,we have more than 15 years experience.
2.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
3. How many days do you need to prepare the goods?
We need about 20-25 working days for large order.
