SAFM1200 High Speed Automatic Bopp Film Laminating Machine, Big Formate Auto OPP PET PVC Thermal Laminator

Product Description

Product Description

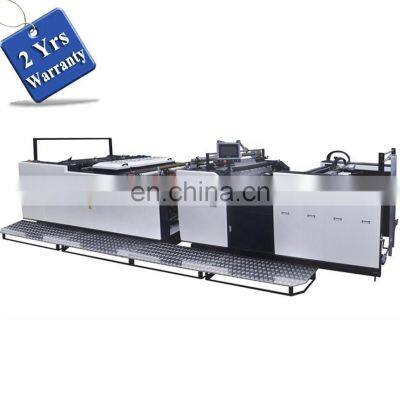

SAFM1200 High Speed Automatic Bopp Film Laminating Machine Auto Thermal Laminator
Videos
Video demonstration only for reference
Video: /watch?v=SxY5u0swkPs
Product Description
Features:
1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
2. Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.
3. Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.
4. High-precision Chrome plated heating roller is equipped with built-in electrical tube heater which makes temperature rise instantly. The laminating temperature is adjustable against different application.
5. Pneumatic pressuring system brings a strong and steady pressure to guarantee good laminating quality.
6. Air shaft makes fill rolls loading and unloading more convenient.
7. The combination of air shaft and braking device can adjust film release tension and speed.
8. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
9. Film perforating wheel perforates film edge for the automatic cut of laminated paper.
10. Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won’t curve again after cut.
11. Pneumatic cutting system realizes automatic paper cut.
12. Automatic paper stacker equipped with pat device stacks and tidies up cut paper. Patting frequency of pat device is adjustable.
Parameters:

Model	SAFM-1080	SAFM-1200
Max Paper Size	1080x1100mm	1200x1200mm
Min Paper Size	340x340mm	450x450mm
Paper Range	100-500g/m2	100-500g/m2
Laminating Speed	0-80m/min	0-80m/min
Gross Power	35KW	37KW
Total Weight	7000kg	7600kg
Dimensions	9000*2200*1900mm	10600*2500*1900mm

Detailed Images
Auto Feeder
This machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine.
Side Lay Regulator
The Servo controller and side lay mechanism guarantees precise paper alignment at all times.
Corrugated Delivery
A corrugated delivery system collects paper easily.
Electromagnetic Heater
Equipped with advanced electromagnetic heater. Fast pre-heating. Energy saying. Environment protection.
Human Computer Interface
User-friendly interface system with a color touch screen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine’s speed.
Anti-curve Device
This machine is equipped with an anti-curve device, which ensures the paper remain flat and smooth during the lamination process.
Automatic stacker
The pneumatic stacker receive the paper, keeping them in order, while rapidly counting every sheet.
Double face laminating , electromagnetic heating (Optional)
Chain Cutter System (Optional)
Applying to cut BOPP, PET, and PVC film etc. Having the feauture of accurate seperation free of film margin.
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Paper thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
