High quality PE PP plastic recycling machine

Product Description

Product Description
This RIGID PE PP BOTTLE/BUCKET PLASTIC RECYCLING MACHINE is used to recycling the waste HDPE/LDPE/PP bottles and buckets, hollow container and so on.The whole recycling line including the conveyor belt, metal detector, wet crusher, floating washing tank, high speed friction washer machine, centrifugal dewatering machine, hot air drying system and material collecting packing system.The waste dirty rigid pe pp bottles/buckets go through crushing, washing, drying, collecting process will turn to be clean flakes for further pelletizing.
We can design the layout into "L" or "U" shape according to your requirements.
We can also customize the washing line according to client's material and product requirement.
Product Parameters

Model	Capacity	Installed Power	Water Supply	Manpower	Area Required
MEB-300	300 kg/hr	100 KW	4-5 m3/hr	3-4 Person	20*4.5*5
MEB-500	500 kg/hr	115 KW	5-6 m3/hr	4-6 Person	20*4.5*5
MEB-1000	1000 kg/hr	125 KW	7-8 m3/hr	8-10 Person	23*5*5
MEB-1500	1500 kg/hr	180 KW	8-10 m3/hr	12-14 Person	23*5*5
MEB-2000	2000 kg/hr	225 KW	10-15 m3/hr	16-18 Person	28*5.5*5

* Working Flow (500kg/h advanced system)
--- Belt conveyor: conveying dirty plastic bottles into crusher. If too much scrap iron, metal detector may be needed.
--- S-series crusher: with water, cut plastic bottles into small size
--- Friction washing loader machine: washing out the sand, soil and loading the material
--- Floating washing tank: washing out the dirty from the material
--- Screw loader: load bottle flakes into the next step
--- Horizontal friction dewatering machine: washing out labels, dirty and remove dirty water
--- Floating washer tank: washing out the dirty from the material
--- Screw loader: load bottle flakes into the next step
--- Dewatering machine: remove the water from the material
--- Hot air drying system: drying the bottle flakes
--- Storage hopper: collect the flakes
--- Control cabinet: control the line on/off (famous brand such as Schneider, Siemens, etc.) Detailed Photos

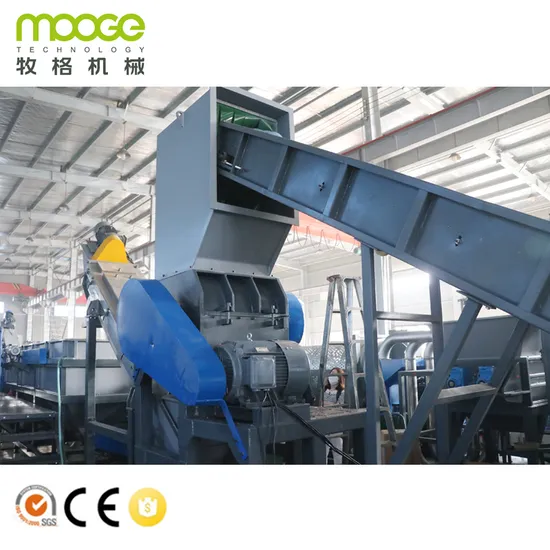

Plastic Crusher Machine Friction Washing Loader
--Function :crushing the pe pp bottles/buckets into small flakes --Function: Friction washing the flakes with water and loading up it
Floating Washing Tank Horizontal Dewatering Machine
--Function: Floating washing separate the sand, soil and other dirty --Function: take out dirty and remover water from the material
Hot Air Drying System Electric Cabinet
--Function: futher drying the bottle flakes with hot air --Function: control the whole line on/off for easy operation
Related Photos
We also supply plastic pelletizing line / plastic granulator to make the clean flakes into pellets (granules).
Double stage die-face cutting plastic pelletizing line Double stage strand-cooling cutting plastic pelletizing line
Packaging & Shipping
• For the loose cargo we will packing by wooden box
• For the full container loading we are packing the machine by film and some on pallet accordingly
• We can ship the goods by air or by sea
• We will send pictures of cargo loading to our client to check and keep recording
• We can send cargo to client's warehouse to loading
Company Profile
MOOGE TECH is a professional machine manufacturer dedicated to designing and developing the high technology plastic machine with more than 10 years' experience. Our developing concept is do better and better, and we are looking forward to cooperating with you for a bright future.
After Sales Service
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
FAQ
* In order to match your requirement and provide you a proper quotation, please Let us know:
• What material do you want to recycling? PE film? PP woven bag? HDPE/PP bottle? or other plastic?
• What capacity(kg/h) do you want?
• What is the final size(mm) of flakes you want?
• Other special requirements about the pe pp plastic recycling machine you want.
* If you are interested in our pe pp plastic recycling machine, pls do not hesitate to contact me!
