Portable Tungsten Electrode Grinders for Orbital Welding

Product Description

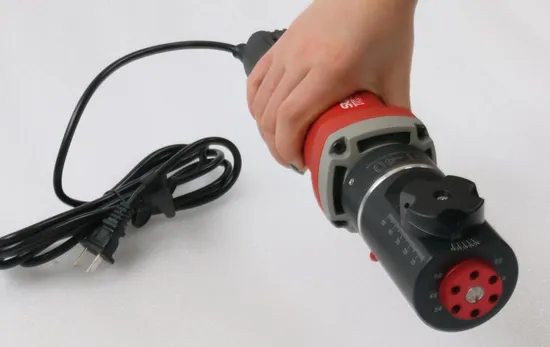

ST-40 Portable Tungsten Electrode Grinders for Orbital Welding
Tungsten electrode grinder is the best and safe way for improving TIG argon ARC Welding & Plasma welding etc. Generally it request to grind on tungsten and it is very necessary to use a tungsten electrode grinder to shape the tungsten and achieve a surface roughness for improving welding quality and reduce harmful operation by human body. Portable electrode Grinder Sharpener is easy to adjust on the sizes and bevel angel, Efficient operation with high quality.
Specifications for ST-40 Portable Tungsten Electrode Grinders for Orbital Welding

Product Model	GT-PULSE	ST-40
Input Voltage	220V AC50-60Hz	220V AC50-60Hz
Total Power	200W	500W
Wire Length	2 meters	2 meters
Rotating Speed	28000 r/min	30000 r/min
Noise	65 db	90 db
Milling Diameter	1.6/2.4/3.2mm	1.0/1.6/2.0/2.4/3.2/4.0/6.0mm
Bevel Angel	22.5/30 degree	20-60 degree
Packing Box	310*155*135mm	385*200*165mm
N.W	1.2 KGS	1.5 KGS
G.W	2 KGS	2.5 KGS

Main Characteristics for Portable Tungsten Electrode Grinders for Orbital Welding
1. Electrode Grinder using reliable and quality micro motor with R.P.M controlled electronically.
2. Unique design for with dust collection to reduce human harm.
3. Easy adjust on bevel angel and tungsten diameter and portable design.
4. High Precision on surface to improve welding quality.
5. Electrodes and tips are sharpened to confirm to recognized standards
6. Replaceable grinding wheel diamond coated on both sides
7. Suitable for vary electrode angels and diameters with OEM service.
8. Customized available with OEM Service
