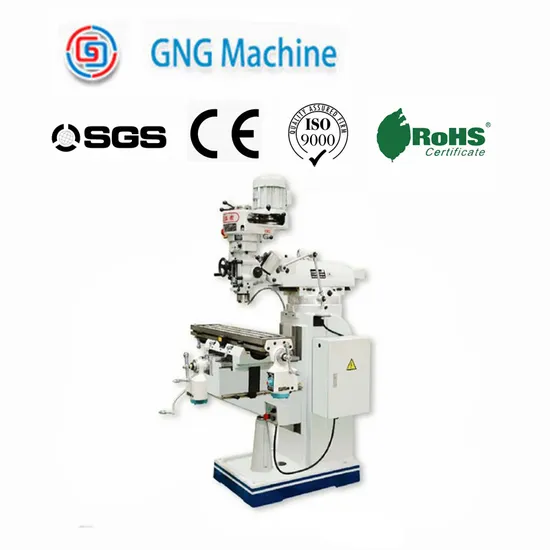

Universal Turret Milling & Drilling Combination Machine
| US$3,330.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6323B
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Working Table Size
230X1246(9"X49")
Spindle Hole Taper
R8 or ISO30/40
Long Travel
840mm
Cross Travel
305mm
Spindle Motor Power
2.25kw/3HP
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China
HS Code
84595900
Production Capacity
300/Per Month
Product Description
Min. Order Quantity: 1 Set/Sets
Port: Qingdao
Payment Terms: L/C, T/T
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: X6323B
Type: Universal
CNC or Not: Normal
Voltage: 380V
Power(W): 2250W
Dimension(L*W*H): 1400X1476X2030mm
Weight: 1060kgs
Certification: CE
Warranty: 12months
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
Table size 230X1246(9"X49")
Spindle hole taper R8 or ISO30/40
Spindle travel127
Universal milling machine X6323b
Table size: 230X1246(9"X49")
Long travel: 840mm
Cross travel: 305mm
Vertical travel: 350mm
T-slot number and size: 3X16
RAM travel: 315mm
Distance from spindle nose to table surface: 0-350mm
Spindle hole taper: STANDARD-R8, OPTIONAL ISO30/40
Spindle travel: 127mm
Spindle speed: Standard 16shift grade-50Hz 66-4540, 60Hz 80-5440
Optional variable - 60-4200
Auto quill feed: Three steps 0.04/0.08/0.15mm/revolution(0.0015"/0.003"/0.006")
Spindle motor: 2250W
Head swivel 90°
Head tilting 45°
Packing size: 1400X1476X2030mm
Gross weight 1060kgs
