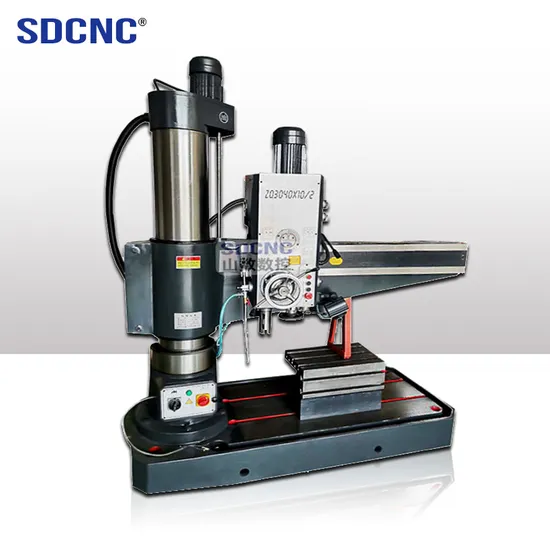

High Precision Quantity Radial Drilling Machine Z3040 Cheap Radial Machine

Product Description

SPECIFICATIONS

SPECIFICATIONS	Z3040×11/I
Max.drilling dia(mm)	40
Headstock level migration distance (mm)	715
Distance from spindle axis to column surface (mm)	330-1050
Under the main axle is away from the end surface to the basic skills left side of (mm)	170-1110
Rocking shaft heave height(mm)	700
Rocker vertical moving speed(m/mm)	1.32
Rocker rotary angle °	±90°
Spindle taper(MT)	MT4
Spindle speeds range(r/mm)	40-1896
Spindle speed steps	12
Spindle feeding range(mm/r)	0.13-0.54
Spindle feeding steps	4
Spindle travel(mm)	260
Maximum torque spindle(N)	200
Maximum resistance to the spindle(N)	10000
Spindle motor power(kw )	2.2
Weight(kg)	1600
Overall dimensions of machine(L×W×H) (mm)	1655×720×2200

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces
CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical
lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other
CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial
drilling machine, vertical drill Bed and other machine tools.
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
