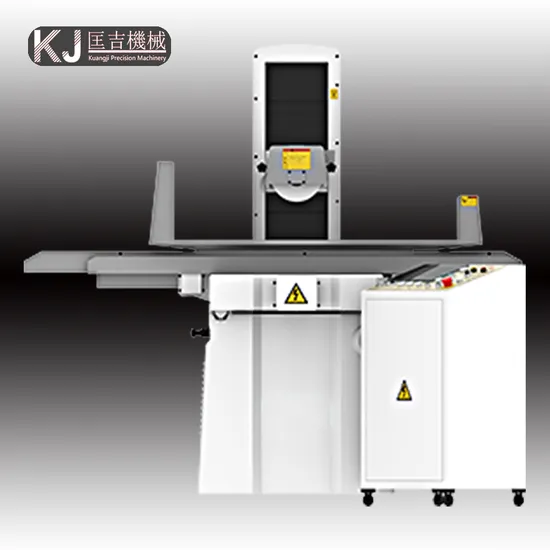

CNC Precision Surface Grinding Machine Psg-818wms3 Flat Grinder Saddle Type Three-Axis Automatic Series
| US$26,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PSG-818WMS3
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Voltage
380V
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
PSG-818WMS3 Standard model configuration: Three-axis automatic, three-axis servo system, water tank, electromagnetic chuck (magnetic strength can be adjusted) 10-inch touch screen electric cabinet, optional fixed automatic grinding wheel dresser/diamond roller dresser (excluding diamond roller), magnetic separator, large wall panel| Technical parameters | ||||||||||
| Item | Specification | Unit | PSG-818AH | PSG-818AHR | PSG-306AH | PSG-306AHR | PSG-804AHR | PSG-4510/5010AHR | ||
| Capacity | Overall table working area | mm | 460x200 | 460x200 | 600x300 | 600x300 | 800x400 | 1000x450 | 1000x500 | |
| Longitudinal table travel | mm | 560 | 560 | 700 | 700 | 860 | 1160 | |||
| Cross feed table travel | mm | 250 | 250 | 350 | 350 | 480 | 500 | 540 | ||
| Distance spindle center to table | mm | 470 | 470 | 525/(Standard)725/(Extended) | 525/(Standard)725/(Extended) | 580/(Standard)700/(Extended) | 585 | 585 | ||
| Table & Cross feed | Table load including magnetic chuck | kgs | 120 | 120 | 420 | 420 | 700 | 800 | 900 | |
| T-slot | mmxn | 14x1 | 14x1 | 14x1 | 14x1 | 14x3 | 16x3 | |||
| Longitudinal table speed | m/Min | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | |||
| Slide way | 1V1Flat | 1V1Flat | 1V1Flat | 1V1Flat | 1V1Flat | 1V1Flat | ||||
| Cross feed on hand wheel | lgra | mm | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | ||
| lrev | mm | 4 | 4 | 4 | 4 | 4 | / | |||
| Auto cross feed per stroke | mm | 0.1-8 | 0.1-8 | 0.1~8 | 0.1~8 | 0.1~8 | 0.1~8 | |||
| Power cross feed | 50HZ | mm | 820 | 820 | 790 | 790 | 990 | 700 | ||
| 60HZ | mm | / | / | 950 | 950 | 1190 | 800 | |||
| A few axis nc | unit | / | / | / | / | / | / | |||
| Grinding wheel | Wheel dimension | mm | 205x6~20x31.75 | 205x6~20x31.75 | 355x20~40x127 | 355x20~-40x127 | 355x20~40x127 | 355x20~50x127 | ||
| Spindle speed | 50HZ | R.P.M | 2850 | 2850 | 1450 | 1450 | 1450 | 1450 | ||
| 60HZ | R.P.M | 3420 | 3420 | 1740 | 1740 | 1740 | 1740 | |||
| Vertical movement | Vertical on handwheel | lgra | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.005 | 0.005 | |
| lrev | mm | 2 | 2 | 2 | 2 | 1 | 1 | |||
| Spindle speedAuto down feed elevation | mm | / | / | / | / | / | / | |||
| Power head increment | mm/min | / | 380 | / | 380 | 190 | 190 | |||
| Motor | Spindle motor | HXP | 2x2 | 2x2 | 5x4 | 5x4 | 7.5x4 | 7.5x4 | ||
| Power elevation motor | W | / | 150 | / | 150 | 150 | 150 | |||
| Hydraulic motor | HXP | 1x4 | 1X4 | 2x4 | 2x4 | 3x6 | 3x6 | |||
| Cross feed motor | W | 40 | 40 | 80 | 80 | 80 | 80 | |||
| Dust collection motor | HXP | 3/4x2(customizable) | 3/4x2(customizable) | / | / | / | / | |||
| Coolant motor | HXP | 1/8x2 | 1/8x2 | 1/8x2 | 1/8x2 | 1/8x2 | 1/8x2 | |||
| Dimension & Weight" | Machine height | mm | 1775 | 1775 | 1900/(Standard)2100/(Extended) | 1900/(Standard)2100/(Extended) | 1930/(Standard)2050/(Extended) | 1993/(Standard) | ||
| Floor space | mm | 2080x1400 | 2080x1400 | 2620x1700 | 2620x1700 | 3330x2040 | 4140x2330 | |||
| Net weight | kgs | 1450 | 1470 | 1750 | 1760 | 3000 | 3800 | 4200 | ||
| Gross weight | kgs | 1550 | 1570 | 1950 | 1960 | 3500 | 4800 | 5200 | ||
