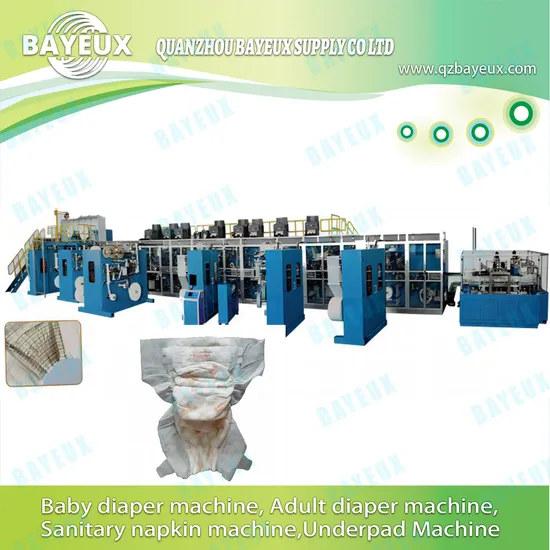

High Effective Full Servo Baby Diaper with Belt Making Machine

Product Description

The size of the full servo big waist baby diaper making machine is 29m*8m*4.5m(based on the product provided by the client) and the machine weight is 70 tons approximately. The machine is equipped with servo control and smart system configuration, including a program system, tension system, driven system, packaging system, safety system, and web guiding system. The machine has high production capacity, can work continuously, with few interruptions, working speed of 600 pieces/min, which can produce a large number of baby pants in a short time. The uncoiling is stable during splicing, and the splicing can be automatically spliced or the button splicing can be controlled. The splicing speed can be set separately on the operation screen. The roll diameter of the raw material splicing type can be accurately adjusted to save raw materials.

Design Speed	500pcs/min
Stable Work Speed	400-450pcs/min
Power Supply	380V±5%,50HZ(3 phase,4lines,ground-in)
Installation	300KW(excluding air compressor,glue machine)
Power Used	350KW
Air Compressor	0.6-0.8Mpa
Product weight Tolerance	±5
Qualified Rate	≥97%(excluding glue,splice,raw jointer defectives)
Efficiency	≥85%
Machine Size(L*W*H)	29m*8m*4.5m
Working Size(L*W*H)	32m*10m*6m
Machine Weight	70Tons
Machine Color	Blue (can be designed as customer's demand)
Machine Direction	Face the machine from left to right (can be designed as customer's demand)

Full servo baby diaper production line adopts constant tension control frequency conversion coil core drive unwinding, adopts rewinding and unwinding assembly mechanism, does not slow down, does not stop, automatic (zero speed) feeding control coil change, adopts air expansion coil shaft on and off. Equipped with an automatic material detection device, it automatically eliminates defective products. The main pieces are precision machined with a CNC machine tool. The surfaces of all components should have anti-rust treatment, automatic corrective control of material transfer, and a touch-screen manipulation desk that provides a human-computer dialogue interface for graphical control. The machine is convenient to use, the magnetic roller has a strong adsorption capacity, and the structure is reasonably designed to greatly increase the production efficiency. Also, servo panty liner production lines cost less to maintain than traditional production lines.
Key features of the machine include a touch-screen control panel that enables human-machine dialogue, graphical control, and full servo frequency optional speed control with PLC program management. It also boasts active uncoiling of raw materials, constant tension control and automatic material change capability, as well as cut-off and missing material detection alarms with garbage removal at the receiver head. In addition, it provides non-stop phase adjustment and automatic counting and bagging of products. Please do not hesitate to contact us if you require further information regarding the machine. We will provide you with detailed answers to your queries.
Machine Features

Machine Production Workshop

Finished Products
Big waist baby diaper
