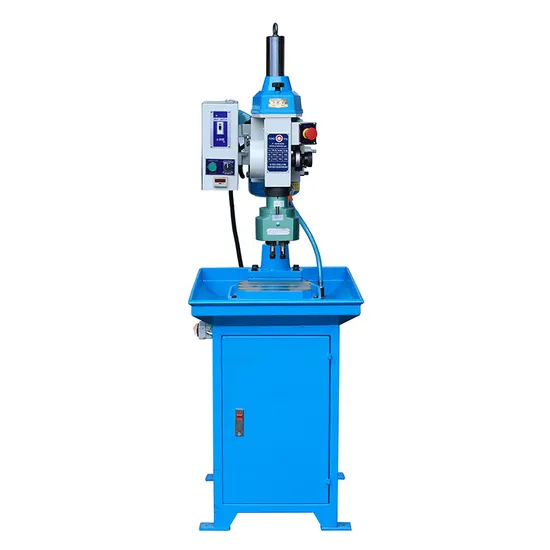

Hotsale Yongxing Vertical Type Jt4508 Automatic Tapping Machine

Product Description

Product Description
Factory Directly Automatic CNC vertical/horizontal Gear Type Tapping Machine
1.Special design of positive and reverse motor,low inertia to prevent breakage of tapping.2.The motor is equipped with an independent cooling fan to compel heat dissipation, which can be operated continuously and is durable.3.The spindle can be operated in high speed and continuous cycle.Employees only need to put the processed products, which is easy, convenient, safe and efficient.4.It is especially suitable for the processing of fine and blind holes in precise hardware such as watches, glasses, mobile phones and cameras.5.It can be equipped with multi-axis tapping device to complete one-off multi-hole tapping and automatic tapping at the same time, which improves the production efficiency.6.Solid column, tempered to eliminate stress, hard chromium plating, friction resistance, no rust.
Detailed Photos
Product Parameters

Technical Parameters	JT4508 Automaatic Tapping Machine
Max Tapping Diameter for Steel	M8 x 10mm
Tapping Diameter Range for Aluminum Copper	M12 mm
Distance between spinde Axis and Column Surface	185mm
Max Distance between Spindle Nose and Worktable Surface Base	470mm
Vertical Stroke of Worktable ( Max)	60mm
Size of Worktable (L x W)	235*230mm
Spindle Speed (4-pole)	1600, 900, 500
Motor Power (3-phase 4 pole)	0.75kw
Overall Size (L*W*H)	600 x 300 x 930 mm
N.W.	129kg

Company Profile
Zhejiang YOngxin Bench Drill Manufacturing Co. Ltd, was established in 1982, the company is a professional engaged in YONGXING brand design and manufacture of CNC Machining Center, CNC Drilling and Milling Machine, Tapping Machine, Cutting-Feed Vertical Drill Machine, Bench Drill, etc. Our Company has a professional R & D, design, production, manufacture and sales service in one of the well-known brand enterprises.
To better meet customer demand in supporting, We do OEM & ODM service based on the customer's real demands. Welcome to send us your enquiry.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Machining Center, CNC Drilling and Milling Machine, Tapping Machine, Cutting-Feed Vertical Drill Machine, Bench Drill, etc
3: Where is our factory located? How can I visit there?
A : Our factory is located in Yueqing City ,Zhejiang Province, China, convenient transportation. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
