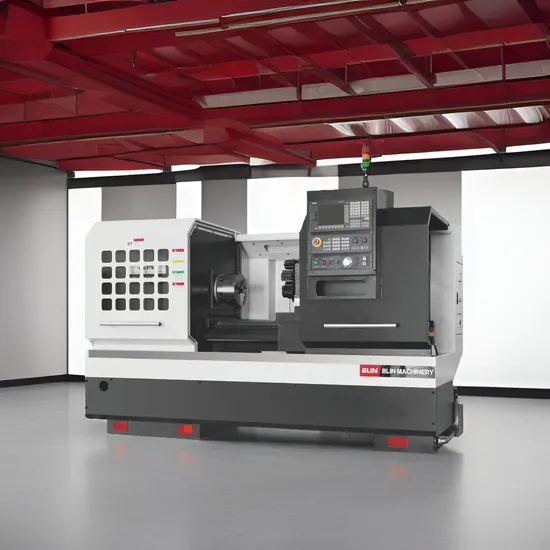

Horizontal Flat Bed CNC Lathe 6140 (BL-CAK series)
| US$14,000.00-23,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
BL-CAK6140/6150/6161/6166/6180
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Guideway Width
400mm
Max. Swing Dia. Over Bed
400/500/610/660/800mm
Center Distance
750/1000/1500/2000/3000mm
Spindle Bore
Φ52(Opt.:Φ80/Φ104)mm
Spindle Motor
7.5/11kw
Spindle Speed
1500rpm
Chuck Size
8′′/10′′
X/Z Axes Positioning Accuracy
±0.015mm
X/Z Axes Repositioning Accuracy
±0.006mm
Tool Post
Vertical 4/Horizontal 6, 8station Tool Turret
Transport Package
Veneer Case
Specification
400/500/610/660/800*750/1000/1500/2000/3000mm
Trademark
BLIN
Origin
China Zhejiang
HS Code
8458110090
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
Horizontal flat bed cnc lathe 6140(BL-CAK series)- Guideway width 400mm, suitable for heavy cutting
- Can choose Independent spindle or 3 class gear spindle
- Can choose 52mm, 80mm,104mm spindle bore
- Bed casted by China best compound resin sand cast iron
- Guideway hardened by ultrasonic frequency, good precision keeping
- Aging treatment,has good vibration absorption and rigidity
- Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force
- Spindle use high precision bearing, Germany KLUBER lipid
- High precision ball screw, connected with motor directly
Details:
| Item | Specification | Unit | BL-CAK6140 | BL-CAK6150 | BL-CAK6161 | BL-CAK6166 | BL-CAK6180 |
| Capacity | Guideway width | mm | 400 | ||||
| Max. swing dia. over bed | mm | Φ400 | Φ500 | Φ610 | Φ660 | Φ800 | |
| Max. swing dia. over slide | mm | Φ210 | Φ280 | Φ370 | Φ400 | Φ540 | |
| Center distance | mm | 750/1000/1500/2000/3000 | |||||
| Max. workpiece weight | kg | 300 | |||||
| Spindle | Spindle bore | mm | Φ52(Opt.:Φ80/Φ104) | ||||
| Spindle taper | / | MT6#(spindle bore Φ52); Φ90 1:20(spindle bore Φ80); Φ113 1:20(spindle bore Φ104) | |||||
| Spindle speed | rpm | Independent spindle:100~1600;3 class gears:21~150,66~500,162~1500 | |||||
| Spindle head type | C6(spindle bore Φ52);D8(spindle bore Φ80,Φ104) | ||||||
| Chuck size | / | 8''/10'' | |||||
| Spindle motor | kw | 7.5 | 11 | ||||
| X/Z axes | X axes travel | mm | 250 | 260 | 320 | 340 | 410 |
| Z axes travel | mm | 600/850/1350/1850/2850 | |||||
| X/Z axes ball screw O.D. | mm | 25/50 | |||||
| X/Z axes positioning accuracy | mm | ±0.015 | |||||
| X/Z axes repositioning accuracy | mm | ±0.006 | |||||
| X/Z axes rapid rate | m/min | 4/6 | |||||
| Tool post | Tool post type | / | Vertical 4T/Horizontal 6,8T | ||||
| Toolshank size | mm | 25×25 | |||||
| Tailstock | Tailstock quill travel | mm | 150 | ||||
| Tailstock quill dia. | Φ75 | ||||||
| Tailstock quill taper | / | MT5# | |||||
| Accuracy | Turning accuracy | / | IT6-7 | ||||
| Turning roughness | μm | Ra1.6 | |||||
| Turning roundness | mm | 0.005 | |||||
| Turning flatness | mm | 0.025/300 | |||||
| Others | Overall size | mm | 2450/2700/3200/3700/4700× 1600×1800 | 2500/2750/3250/3750/4750×1650×1900 | |||
| Net weight | kg | 2100/2200/2300/ 2700/3500 | 2200/2300/2400/2800/3600 | 2250/2400/2600/2850/3650 | 2300/2450/2650/2900/3700 | 2400/2550/2750/3000/3800 | |
Main parts list:
| Item | Brand |
| Bearing | CHINA top-HRB |
| Spindle | Own-made |
| Ball screw | CHINA TOP |
| Hydraulic parts | TAIWAN |
| Electricity parts | FRANCE-SCHNEIDER |
Standard configuration:
-GSK980TC3 controller
-Manual chuck
-4 station tool post
-Manual tailstock
Optional configuration:
-SIEMENS 808D ADVANCED/FANUC 0I TF controller
-Hydraulic chuck
-6/8 station tool turret
-Hydraulic tailstock
