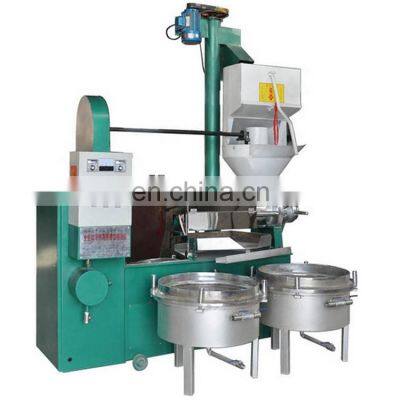

Flaxseed sunflower seed hot press manual mini oil expeller machine

Product Description

Product Description
Product Description
Introduction of mini oil expeller machine
1). This mini oil expeller machine can process sesame seed, rapeseed, peanut, soybean, cottonseed, almond, Tung-oil seed, sunflower seed, tea seed, walnut, caster seed, Perillaseed , Hazelnut,oil palm, oil olive, avocado, pomegranate seed , pistachio nut, neem seed, coconut, about 150 types of oil crops;
2). Pure mechanical press, more healthy, purer flavor, 24 hours continuous work, alloy steel structure and parts, high oil extraction rate, easy to operate;
3). This mini oil expeller machine can both hot and cold press. The press chamber mainly consists of Bar Exhaust type oil leakage parts outside the chamber, meaning this design is capable for cold/raw press, can directly press the raw materials, no need to heat/fry, but the cold press operation should press the cake for the second time to squeeze more oil. In contrast, the hot press operation can squeeze the oil completely for only once time if you use this series machines, no need to compress the cake for the second time, very convenient and more oil yield;
4). Our core part is the press chamber, with our unique patent design, is equipped with our special feeding and transmitting power trains systems,we realize the advanced multistage press and gradual pushing compress technology, which add more pressure points and strengthen higher press degree of the materials. Our reasonable and unique design of the inner chamber, more advanced compared with the traditional, for example, the cold press machine is main bar Exhaust type leakage design out of the press chamber , but the hot press machine is main the round Exhaust type leakage design. The other difference between the hot and cold press is the feeding and transmitting system, our super design;
5). Parts: Infeed Hopper, Gear Box, Press Cage, Press Bolts, Bar Oil Leakage Cage, Pie Mouth, Rack Body, Oil Cylinder, Vacuum Pump, Electric motors, Voltage Meter,Pressure Meter;
6). This series are equipped with the air-pressure / vacuum filtration system, which make it the press integrated with the filtration, more convenient and automatic;
7). Materials:All our machinery's core parts are all made of high quality 20 CrMnTi alloy steel, processed with the imported equipment, going through the process of the cementite quenching and high frequency quenching.So this screw oil press machines can give the maximum oil yield with the minimum wearing and tearing;
8). We can develop and manufacture the oil press machine according to your sample or your design or your any other request , the whole solution for you sincerely!
Working Principle of mini oil expeller machine
When the mini oil expeller machine price is running, the treated oil enters the squeegee from the hopper. By the squeeze screw rotation of the material embryo continue to push forward, for pressing. As the material embryo in the press of the press chamber is carried out in the state of motion, in the press chamber under the conditions of high pressure, the embryo and the squeeze, the embryo and the press between the chamber produced a great friction resistance, so Can make the embryo between the micro-material friction, resulting in relative movement. On the other hand, since the diameter of the root garden of the screw is gradually thickened, the pitch is gradually reduced, so that when the screw is rotated, the thread is pushed forward and can be turned outward, and is close to the thread The surface of the material also with the rotation of the shaft. So that in the press chamber of each embryo particles are not equal speed, with the direction of movement, but also between the particles there is relative movement. The heat generated by the friction also satisfies the heat necessary for the operation of the oil extraction process, which helps to promote the thermal denaturation of the protein in the embryo, to destroy the colloid, to increase the plasticity, and to reduce the viscosity of the oil. Improve the oil press oil rate, so that the material in the oil squeezed out.

Technical Data of mini oil expeller machine
Model	60	70	80	100	120	150
Screw diameter(mm)	55	68	80	100	120	150
Screw speed (r/m)	64	64	63	43	36	33
Motor power(kw)	2.2	3	5.5	7.5	11	15
Vacuum pump(kw)	0.37	0.37	0.55	0.75	0.75	1.1
Heater(kw)	0.9	1.8	3	3.5	4	4
Capacity(kg/h)	30-60	40-70	80-150	150-250	250-350	300-450
Machine weight(kg)	240	280	830	1100	1500	1950
Dimension(m)	1.2*0.48*1.1	1.4*0.5*1.2	1.65*1.44*1.7	1.96*1.63*1.9	2.1*1.68*1.9	2.38*1.85*2

Advantage of the mini oil expeller machine
1). Easy to operate.
2). Adequate quality.
3). The oil yield could reach 40%-60%.
4). Stainless steel used on the surface to reach the standard of food hygiene.
5). Durable, for 1 year free after-sales service. Include replace the parts costs.
6). A double helix oil press equals two oil press, can obtain double benefit.
7). High quality parts, stable oil pressing effect, saving the maintenance cost.
8). Military industrial manufacturing, quality chrome materials, quality trustworthy.
Maintenance of mini oil expeller machine
1). After 50 hours of work should check the lubrication, the gear box above the oil cup shall not be lack of oil, the source through the screw adjustment screw bearings should be drawn from the adjustment screw hole filling butter once, is strictly prohibited dry grinding.
2). The lubrication parts should prevent the intrusion of dust and other impurities, the annual inspection of the oil quality of the gear box once, if found deterioration, should replace all the oil.
3). When the crush is reduced, the cake or oil is not normal, the squeeze should be extracted, check the squeeze, squeeze, a cake, the cake mouth wear, wear parts to be replaced.
4). After each work, you should clear the machine inside the cake, wipe the surface of the machine dust dirt.
5). After the end of the production season after long-term storage, should be a maintenance, and squeeze the snail, squeeze the material, a cake wash and reload oil, placed in a dry place.
6). After each squeeze oil, the screw shaft to remove the cleaning residue, while the dry cloth and cotton swabs to clean the rotating mouth to prevent clogging.
Certifications
Detailed Images
Mini oil expeller machine is our latest development and production of hot pressing, hot pressing can be. This machine with spiral system and pressurization system of material in whole cycle, the oil pan with electric heating function, perception can keep the superiority of hot pressing.
Heating part of mini oil expeller machine
The oil will outflow from this part
The Electric cabinet of mini oil expeller machine
Control panel and inside details
This Black part of cold press oil expeller is mainly used to control oil cake thickness. turn left, the thickness will be thin, turn right, the oil cake will be thick.
Spare parts of mini oil expeller machineScrew
Oil seal
Heating
