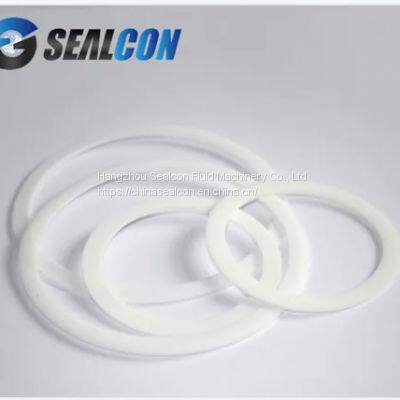

PTFE Seal

Product Details

Product Description

Product Description
Polytetrafluoroethylene (PTFE), also known as teflon/teflon or plastic king, is a copolymer of tetrafluoroethylene monomer. First, it was developed for national defense and cutting-edge technology and development but later it has gradually extended to civil use, which is generally applied to corrosion-resistant pipes, containers, pumps, high frequency communication equipment and wireless electrical equipment with high performance requirements.
PTFE seal has become the common seal material for its unique properties.
Performance of PTFE Seal
Stability: almost all chemical resistance, strong acid, strong alkali or strong oxidizer and organic solvents have no effect on it.
Thermal stability: pyrolysis temperature above 400 ℃, therefore, it can work within the scope o - 200 ℃ ~ + 350 ℃.
Wear resistance: the friction coefficient of PTFE material is extremely low, only 0.02, which is 1/40 of rubber.
Self-lubricating: the surface of the PTFE material has a prominent self-lubricating property, and almost all of the viscous material cannot adhere to its surface.
Selection of PTFE Seal Material
However, the pure PTFE has the low strength and the abrasion performance is not very perfect. Usually some inorganic particles are put into the polymer PTFE, such as graphite, molybdenum disulfide, molybdenum disulfide, aluminium oxide, glass fiber, carbon fiber and so on to improve its mechanical properties. It also can be used with other polymers, such as polystyrene resin (PHB), polyphenylene sulfide (PPS), polyether ether ketone (PEEK), poly (perfluorinated (ethylene/propylene copolymer (PFEP) blending method to extend its damping temperature range and improve the creep resistance. Therefore, different PTFE materialas produce all knids of PTFE mechanical seals.

properties	unit	pure PTFE	glass fibire filled PTFE	carbon filled PTFE
density	g/cm3	2.2	2.3	2.08
tensile strength	MPa	30	15	13
max. working temperature	℃	260	260	260

There are many seal ring suppliers, but Hangzhou Sealcon Fluid Machinery Co., Ltd are one of the best choices for you. we provide sealcon china, quality mechanical seals and etc. For more information, please feel free to contact us!
