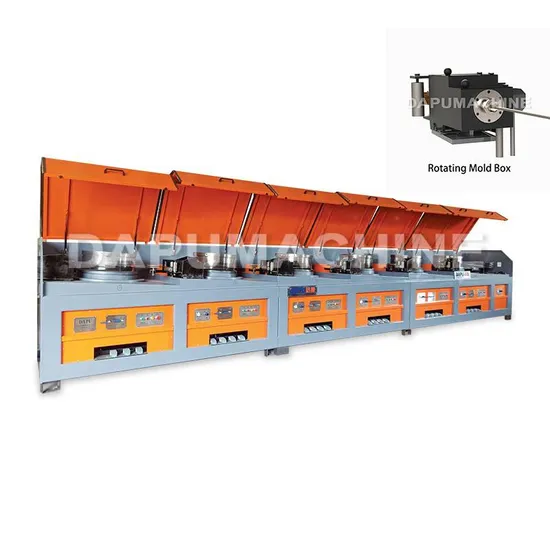

Automatic Straight Line Wire Drawing Machine for Nail Making, Barbed Wire, and Fence Mesh – High Efficiency Steel, Aluminum Rod Processing
| US$5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DP-LZ-560
Type
LZ Straight-Line Metal Drawing Machine
Usage
Wire, Rope Wire, Prestressed Steel Wire, Standard Parts
Metal Material
Steel
Outlet Diameter
Customized
Max.Inlet Wire Dia.
14mm
Block Dia.
560mm
Max. Number of Block
12
Certification
ISO, CE
Condition
New
Product Name
Straight Line Wire Drawing Machine
Number of Blocks
Max.12PCS
Each Motor Capacity
37kw/30kw/22kw
Drawing Speed
Max.18m/S
Transport Package
a 20gp Container
Specification
5*1.5*1.3M
Trademark
DAPU
Origin
China
HS Code
8463300000
Production Capacity
20sets/Month
Packaging & Delivery
Package Size
350.00cm * 160.00cm * 125.00cm
Package Gross Weight
2000.000kg
Product Description
Product DescriptionThe wire drawing machine is used to draw the wire diameter from thick to thin.
Finished small wire can be used to make nails, binding wire, welding mesh etc. construction site.
| Model | LZ-560 |
| Raw material | Low-carbon steel wire,wire tensile strength≤550MPa |
| Number of blocks | Max.12pcs |
| Input wire diameter | 8.0mm, 6.5mm,5.5mm |
| Output wire diameter | 4mm, 3mm, 2.5mm,2.2mm, 2mm,1.8mm,1.6mm, etc |
| Each motor capacity | 22kw |
| Drawing speed | Max.18m/s |
| Each block weight | 2000KGS |
| 1 CNC control, all working status can beshown & set on the touch screen. | |
| 2 Rotation type drawing box to ensurethe finished wire rounder. | |
| 3 Supersonic tungsten carbide sprayon the block surface. | |
| 4 Water cooling system inside of the blockto reduce the working temperature. | |
| 5 Drawing blocks adopts reducer 8synchronous belt, working speedwill be higher. |
1.Upper pull-out wire rack is used to feed the wire material.
2.Sheller is used to clean steel rust and oxide coating on wire surface.
3. Wire pointing & inserting machine is used to make the wire head sharp, then insert into the drawing die directly.
4.Butt welding machine is used to connect new wire coil when one is finished.
5.Trunk type wire coiling machine is used to coil the finished wire.
6.Wire coiling machine is used to coil the finished wire.
| Model | DLW-350 |
| Raw material | Annealed galvanized wire,black wire etc. |
| Input wire diameter | 3.0mm,2.5mm,2.2mm,2.0mm etc. |
| Output wire diameter | 1.2mm,1.0mm,0.8mm,0.6mm etc. |
| Drawing speed | Max.700m/min |
| Motor capacity | 22kw/30kw/45kw |
| Inverter | 22kw/30kw/45kw |
| Weight | 1800KGS |
