China Metal Sheet Cutting Guillotine CNC Hydraulic Shearing Machine with P40t

Product Description

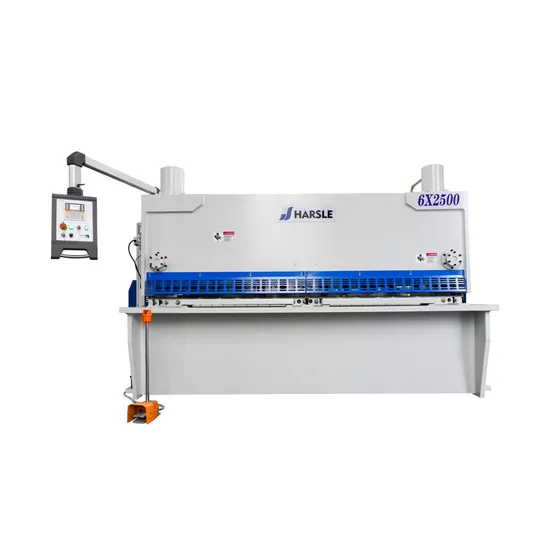

Harsle QC11K Guillotine CNC NC Shearing Machine for Cutting Iron Metal Sheet with P40t

Features
1) This machine is used for the shear sheet metal in line, metal materials should be tensile strength of less than 450 N/mm2, non-metallic material including rubber, plastics, when cutting hot plate temperature should below 50 °C, The machine can make only intermittent shear in full load, if tensile strength is higher , shear thickness should be reduced.
2) The machine is applicable to uncoiling, leveling, shearing, workshop of production line for plate processing
3) The machine base is steel- welding, the structure is compact, good rigidity.
4) Track of blade movement is precision casting copper, less friction
5) The upper guide can adjust until achieving a good shear section, below blade can adjust via welding screw make the cutting mouth smooth
6) Feeding devices use spring pressure, the clamps have mat piece, the pressure force is big, and not easy to damage the sheet metal surface.
7) The machine is completely independent closed gearbox transmission system, move directly connection with main axis, compact structure, gear have good lubrication, low noise, and long life.
8) The machine equipped with the pneumatic clutch device, high friction, long service life, clutch speed is high so that it improves the shearing speed.
