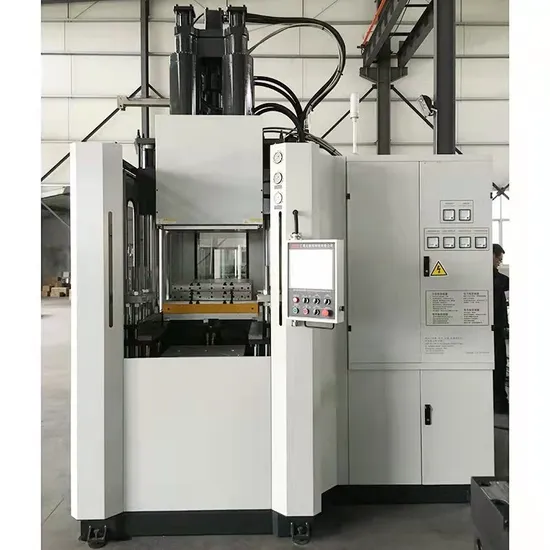

Rubber Injection Moulding Press /Rubber Vertical Injection Moulding Machine

Product Description

Product Description Main application field for the rubber&silicone injection molding press machine:
Rubber&Silicone Injection Molding Machine is ideal for the production of various natural&synthetic rubber parts,oil & heat resistant rubber parts, silicone parts,etc.
----CE safety standard
Ergonomic low bed structure for easy opeartion Advanced proportional pressure&speed control from PLC Automated de-moulding and handling devices are optional Option to make silicone material Customized specifications are available Vertical/Horizontal structure with FIFO type injection systems
Technical Specification:

Model	XLB-V200T	XLB-V300T	XLB-V400T	XLB-V500T
Clamping force(ton)	200	300	400	500
Stroke(mm)	500	500	600	600
Platen size(mm)	600x600	700x700	700x800	800x850
Main piston diameter(mm)	355	450	500	560
Max.platen gap(mm)	550	550	700	700
Min. Mold thickness(mm)	60	60	100	100
Core Lifter stroke (mm)	200	200	250	250
Injection unit
Injection volume (CC)	2000	3000	4000	5000
Injection pressure (Mpa)	220	220	205	205
Screw diameter(mm)	45	45	55	55
Nozzle aperture(mm)	6	6	7	8
Others
System pressure (Mpa)	21	21	21	21
Horse Power(HP)	15	20	25	30
Heater power (KW)	19	22	27	31
Total power(KW)	36	40	52	58
Weight(Kg)	7200	9300	11700	14700
Dimension(LxWxH:mm)	2700x1200x3600	3100x1300x4000	3300x1400x4500	4000x1600x4500

Notes: the table only lists out the normal popular standard models, more special larger models can be customized to order. Exhibition
Installation Instructions 1. Professional and quick response to your questions within 24 hours. 2. We will communicate with our production dept. and keep you updated about production progress in time. 3. Customized manufacture available for you. 4. Fast delievery to save your time. 5. Good after sale service will eliminate your worry. 6. Long guarantee period of the quality will reduce your cost and trouble. 7. Professional wooden case packing and ocean shipping control to make your order safe and sound.
8. Full sets of technical documents, instruction manual can be provided.
