High Precision Auto Surface Grinder Machine

Product Description

Product Description
Feature instroduction of saddle moving surface grinder
FSG Series saddle moving grinder, the table size covers 200x500,250x500,300x630,300x1000,400x800,400x1000.
Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes corss movement driven by AC motor, work table make reversing movement driven by hydrau, and spindle make elevating movement and is driven by manual(M series), AC motor(R series), or AC servo motor(A series).
Well-designed control panel with two-way rotate structure, make the operator getting suitable working position very easy, improve work efficiency
Double walled column construction, provide high rigid support to the grinding spindle. Closed steel guard is equipped for protecting spindle motor and guide way, which make the column safe and beautiful.
Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.
Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding.
the A series grinder is standard equipped with auto down feed Servo motor, and controlled by PLC and HMI with built-in program. It is so easy to realize auto grinding.
The work table is driven by imported hydraulic valve unit, realize smoothly motion without shocking
Guide way is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy

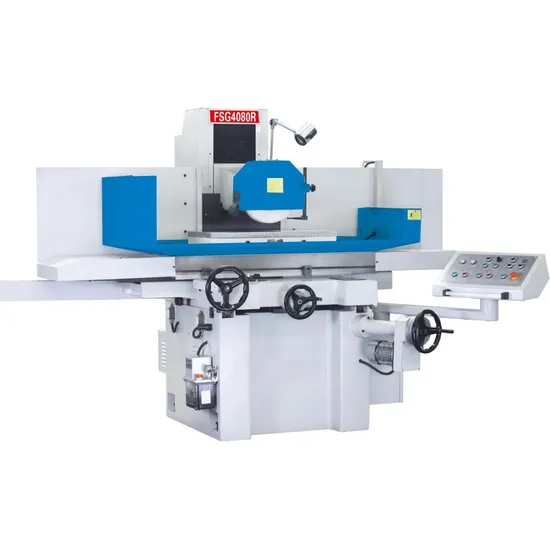

Table size406x813mm, three models to select: M, R, A.
Product Parameters
Specifications

ITEM/MODEL			FSG-4080M	FSG-4080R	FSG-4080A
	Table size	mm	406*813	406*813	406*813
	Magnetic chuck size	mm	400*800	400*800	400*800
	Max.distance from spindle center to table	mm	580	580	580
	Table cross travel	mm	450	450	450
	Table longitudinal travel	mm	910	910	910
)	Max. loading capacity(include chuck)	kg	500	500	500
	Speed of table longitudinal move	m/min	5~25	5-25	5~25
	Cross Motion
	Intermittent feed rate	mm/t	0.1~8	0.1~8	0.1~8
	Rapid speed	mm/min	990	990	990
	Feed of handwheel	mm/div	0.02	0.02	0.02
	Vertical Motion
	Auto down feed rate	mm/t	-	-	0.005-0.05
	Rapid down speed	mm/min	-	650	480
	Feed of handwheel	mm/div	0.005	0.005	0.005
	Spindle rotating speed	r/min	1450 (50HZ)/1750 (60HZ)
	Grind wheel size	mm	350*40*127	350*40*127	350*40*127
	Spindle motor power	kw	4	4	4
(XX)	Floor space (L*W*H)	mm	3600*2400*1900	3600*2400*1900	3600*2400*1900
	Gross weight	kg	3400	3400	3400
	Package size (L*W*H)	mm	2850*2270*2210	2850*2270*2210	2850*2270*2210

the photo shows includeing optional equipment.
