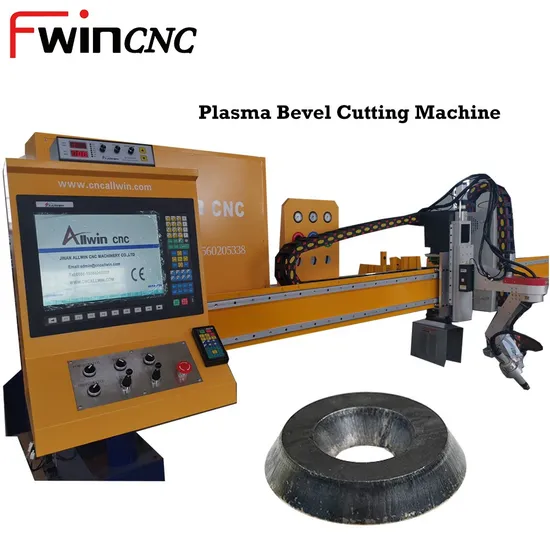

5 Axis Metal Bevel Plasma Cutter Heavy Gantry Plasma Cutting Machine Dishes Vessel Cutting

Product Description

ALLWIN CNC Brand plasma cutting machine Product Description
standard model 1325,1530,1560, 2030, 2040 2060 etc
Equipped with THC control system, LGK series and American plasma source for choose, cutting thickness from 0.3-40mm, use flame cutter head can cut max 200mm thickness. ALLWIN CNC portable plasma cutter we also have dual drive machine also.for more information please check our website CNC beveling cutting machines are suitable for various scenarios. Some of the common applications include:
1. Pipeline manufacturing: CNC bevel cutting machines are used in the pipeline industry. They enable automated bevel cutting, allowing precise control over cutting angles and bevel dimensions. This improves production efficiency and quality. CNC bevel cutting machines are suitable for various pipe materials such as steel and stainless steel.
2. Pressure vessel manufacturing: CNC bevel cutting machines are widely used in the production of pressure vessels. These machines enable accurate bevel cuts for welding and assembly processes. The CNC technology ensures precise and consistent bevel cuts, enhancing welding quality and sealing performance.
Shipbuilding: CNC bevel cutting machines play a crucial role in shipbuilding. Ship structures often require various shapes of bevel cuts for plate joining and welding. CNC bevel cutting machines can accurately cut bevels according to the ship design requirements, thereby improving manufacturing efficiency and quality.
3. Bridge construction: CNC bevel cutting machines find extensive applications in bridge construction. Bevel cuts are often required for welding and connecting various bridge components. CNC bevel cutting machines enable precise and consistent bevel cuts, enhancing the efficiency and quality of bridge manufacturing.
4. Other industries: CNC bevel cutting machines are also suitable for various other industries such as petrochemical, nuclear power, and metallurgical manufacturing. In these industries, the machines assist in meeting complex bevel cutting requirements, improving production efficiency, and ensuring high-quality products.
In summary, CNC bevel cutting machines find applications in diverse industrial scenarios where precise and efficient bevel cutting is required. These machines leverage CNC technology to deliver
parameter for good price stable working Dual drive cnc plasma cutting machine

Moving axis	Choose cutting axis	Range of activities
Y axis	Pipe rotary driving shaft	360 ° free rotation
X axis	The trolley moves along the length of the tube	The maximum stroke 6000 mm
A axis	The torch swings along the length direction of the pipe	±60°
B axis	The torch swings along the radial direction of the tube	±45°
Z axis	Torch move up and down	Travel 300mm

Beveling Cutting Machine configuration

Basic configuration :Model	5 axis pipe CNC cutting machine
Round pipe	Diameter 50-300mm Effective cutting length 6m
pipe	square pipe and round pipe
Plasma cutting speed	10-3500mm/min
Max. Work piece rotating speed:	8r/min
Max. Longitudinal speed:	3000mm/min
A axis Bevel angle	+-60 degree
B axis Bevel angle	+-45 degree
Plasma bevel thickness	depends on plasma source
Control system	BEVEL CUTTING STARFIRE 5610 WITH 15INCH SCREEN
Driving motor	Japan Panasonic servo Rotary axis=2000W
Driving motor	japan Panasonic servo A axis=400W
Driving motor	japan Panasonic servo B axis=400W
Driving motor	japan pansonic servo Z=120W
Driving motor	japan pansonic servo Y=750W
Software	FLMC-Pipe Nest software
Load	8T

2024 Popular poportable pipe tube metal steel cnc plasma cutting machine
Package of cnc plasma cutter
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Our Services # One year warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 12 hours on line service
# Replying your email and offer tecnical service within 24 hours
The spare parts of Our Plasma Cutting Machine:
Sample of plamsa machine
RFQ: Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
