High Precision Universal Vertical&Horizontal Milling Machine Lm1450

Product Description

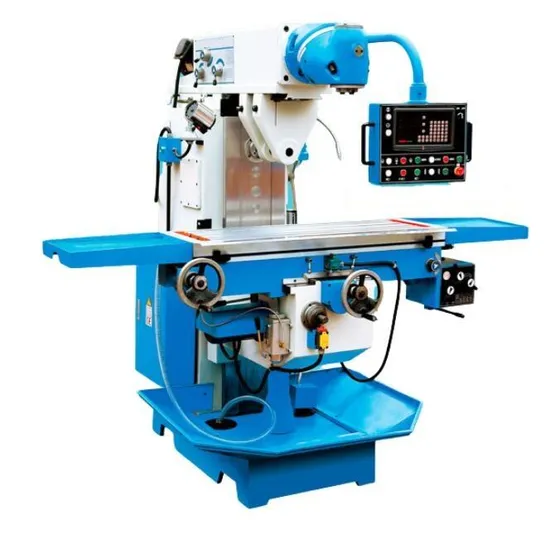

Universal Milling Machine LM-1450
LM1450 is a vertical-horizontal universal milling machine, large travel. Z-axis can be manually, up to 600MM good stability,power feed on two axes,motorized lift on Z axis, three axes hardened.
The fuselage and the lifting platform for the square guide, the longer of the slider to enhance the stability of the table travel.
Specification:

Model No.	LM-1450
Item No.
Specifications
Table size	1250x360 mm
(X,Y,Z)Table travel	970(1000)x300x390 mm
T-slot(number width distance)	3/18/80 mm
Spindle
Spindle Taper	ISO40 (ISO50) (H)
Max end milling	125(V) 100(H)
Swivel angel milling head	±360°
Spindle speed range	35-1600(V) 40-1300(H) rpm
Distance from spindle to table	150-600 mm
Distance form spindle to column	760 mm
Dimension of package
Main Motor	3 kw (ISO50/4 kw)
Overall dimensions	1550x1670x1950 mm
N. W/G. W	2650/2850 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
