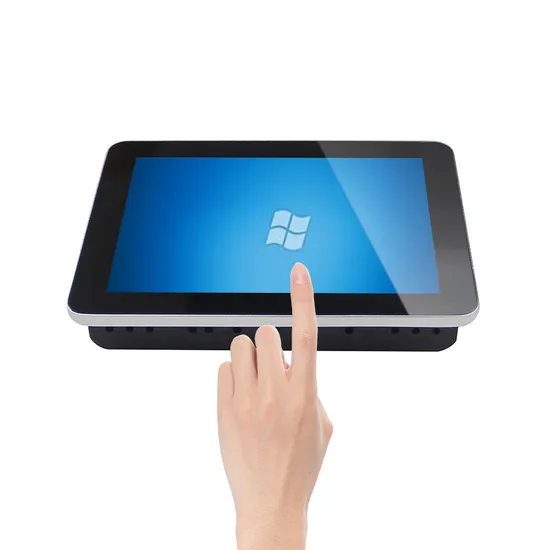

Small Size 8inch Android Tablet PC Computer Touch Screen Display for Vending Machine

Product Description

Features of Tablet 8Inch mini PCAP rugged core I3 touch screen all in one pc for Windows 1.2. Waterproof IP65 front bezel
3. Rugged style.
4. Support OEM Service
5. Aluminum alloy frame and back cover
6. Capacitive touch with 10 points
7. Android OS Supported

Related Products

Electrical Performance

Input power	110-240V AC 50/60Hz	Output power	DC 12V4A
Monitor consumption	20 W	Standby consumption	0.5 W
Android consumption	25 W	Speaker power	8Ω3w

Working Environment

Working temperature	0ºC-50ºC
Working humidity	0% - 90%
Storage temperature	0ºC-60ºC
Storage humidity	0% - 65%

Touch monitor interfaces

Power cord	2.1mm DC12V*1	Audio	1
VGA input (15pin D-Sub)	1	HDM input	1
USB touch interface	1

Android AIO interfaces

Power cord	2.1mm DC12V*1	Headphone	1
RJ45	1	HDM	1
USB (with OTG)	2	WIFI antenna	1
TF /SD card slot	1	TTL/232/485 serial options

Physical Dimension

Screen	7 inch
Display area	155.5 * 87.5 mm (16:9)
Machine dimension(W×H×T)	190(W)×122(H)×28.8(T)mm
Packing dimension(W×H×T)	340(W)×277(H)×97(T)mm
Stand	Wall mount default(N.W 0.48 kg),Stand options
Wall mount holes(L×W)	75×75 mm
Wall mount screws	M4
N.W	0.74KG
G.W	1.75KG

Feature
Capacitive touch: 10 point projection capacitive touch technology, 5-millisecond fast response, precise and stable;
High definition display: brand new A-standard LCD screen, high-definition resolution, brightness ≥ 250cd/m2. Clear and natural colors;
Compatible system: Touchwave can provide single touch displays, Android touch all-in-one machines, and computer touch all-in-one machines;
Stable performance: Each machine has undergone multiple tests such as overall aging, temperature and humidity testing, static electricity detection, vibration, high voltage, touch click, display, etc,
Ensure stable quality and support 7 * 24 hour work (industrial screen required);
Structural technology: private mold design, brand new frame pasting technology, good sealing performance, surface IP65 waterproof, pure flat and thin structure, with the thinnest part only 17mm;
Durable material: aluminum alloy frame+sheet metal back shell, solid and durable, corrosion and oxidation resistant;
Support customization: Provide various customized services and flexibly add multiple serial and USB ports;
(such as appearance color, logo, camera, 4G module, card reader, fingerprint recognition, ticket printer, QR code, etc.)
Easy installation: supports multiple installation methods such as wall mounted/desktop/embedded, plug and play when powered on, without the need for debugging.
