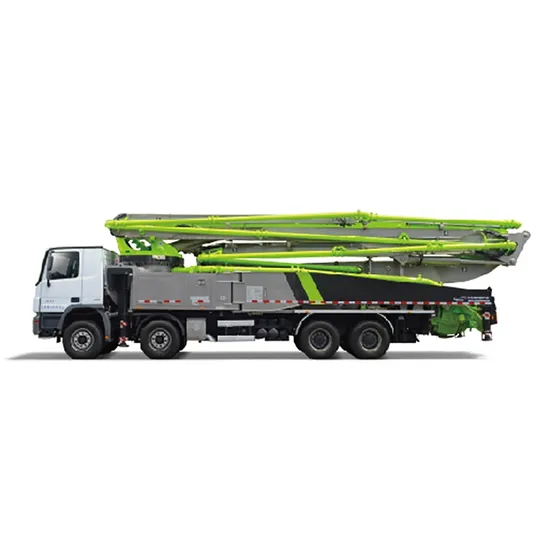

56 M Concrete Truck Mounted Pumps Four-Axles Zoom-Lion with Cheap Price 56X-6rz
Basic Info.
Model NO.
56X-6rz
Type
Concrete Pump
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
150m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White
Maximum Theorical Output
180m3/H
Maximum Pressure on Concrete
113bar
Concrete Hopper Capacity
600L
Maximum Vertical Reach
56m
Maximum Horizontal Distance
51m
Minimum Unfolding Height
15.8m
Section Numbers
6
End Hose Lenght
3m
Transport Package
Nude Package
Specification
10050x2530x3850mm
Trademark
Goldzim
Origin
China
HS Code
84295100
Production Capacity
1000pieces/Year
Packaging & Delivery
Package Size
1005.00cm * 253.00cm * 385.00cm
Package Gross Weight
23000.000kg
Product Description
56 M Concrete Truck Mounted Pumps Four-Axles Zoom-Lion with Cheap Price 56X-6rzProduct Description
Energy Saving: Self-adaptive variable power distribution control technolog
High-Efficiency: Good site adaptability (one side support) High-Reliability: 8 years or 400,000 m³ without crack, making it equivalent to European standard.
Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely.Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.
Energy Saving: Self-adaptive variable power distribution control technolog
High-Efficiency: Good site adaptability (one side support) High-Reliability: 8 years or 400,000 m³ without crack, making it equivalent to European standard.
Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely.
Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.
Specification:
Product Parameters
| Model | | Unit | 56X-6RZ |
| Pump Unit | Maximum theorical output | m3/h | 180 |
| Maximum pressure on concrete | bar | 113 | |
| Conc. cylinders (diam. x stroke) | mm | 260x2100 | |
| Concrete hopper capacity | L | 600 | |
| Hydraulic circuit | | closed | |
| Boom Section | Maximum vertical reach | m | 56 |
| Maximum horizontal distance | m | 51 | |
| Minimum unfolding height | m | 15.8 | |
| Section numbers | | 6 | |
| Rotating angle | | ±270° | |
| End hose lenght | m | 3 |
