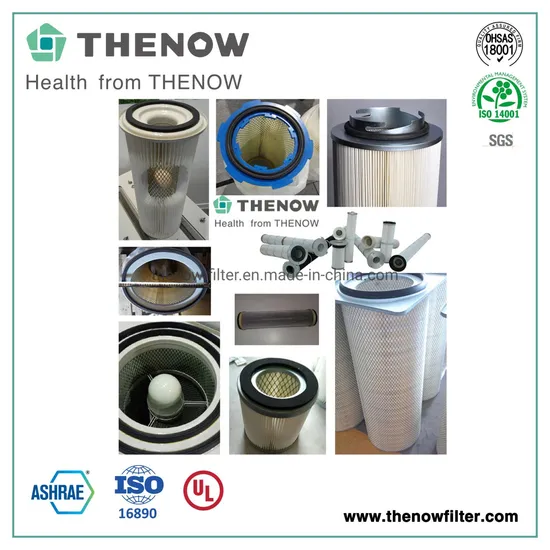

Industrial Dedusting Air Filter Cartridge for Various Dust Collectors

Product Description

Foreword:
Thank you for your interest in advance!
It has been 21+ years since we installed the first dust collector filter cartridge.
You can find various replaceable filters for Donaldson, Clarcor etc. We have all kinds of end caps and filter media available. In order to assure good quality, most of the filter media is from Germany and Suzhou H&V and American Lydall. With our advanced semi-automatic production line, our daily production amount can reach up to 1000pcs.
Welcome to contact us anytime! Product Description Industrial Dedusting Air Filter Cartridge for Various Dust Collectors filters
>Features:
1. Variety of configurations: Conical/Cylindrical, Conical/Conical, and Cylindrical/Cylindrical are ideal for gas turbine air inlet applications.
2. High surface areas, low pressure drop and can be installed either horizontally and vertically
3.Wide pleated depth,large air flow
4. Inner and outer liner
5. Galvanized anti-corrosion metal construction

>Construction:
1. Shape: Conical/Cylindrical, Conical/Conical, and Cylindrical/Cylindrical
2. Top cap:Galvanized steel, no rust.
3. Gasket: EPDM material to ensure airtight sealing
4. Inner mesh: Galvanized steel
5. Outer mesh: Galvanized steel with or not hot melt glue
6. Bottom cap,open/closed: Galvanized steel

>Technical data:
Filter media: 100%Polyester,100%Cellulose,Blend polyester and cellulose. Domestic and imported are both available here.
Dimension(L*W*H): 324*213*660mm; 445*324*660mm
Efficiency: 99.99%
Dust holding capacity: >1500g
Intial pressure drop: 200-300Pa
Final pressure drop: 1000Pa
Selected Post-processing: -Nano flame retardand
-Nano
-Anti-static
-Flame-retardant
-Oil,water proof
-PTFE Membrane
-PTFE Membrane flame retardant
-Anti-static PTFE Membrane
>Dimensions

Model	OD (mm)	H(mm)	ID(mm)	Bolt hole(mm)
TN10792220	201	559	92	9.5
TN112118218	308	470	295	17.5
TN112120223	308	518	196	23
TN11272611	324	660	213	14
TN112729214	324	750	213	14
TN11273010	324	764	213	15
TN113826214	352	660	240	16
TN113828222	352	711	240	22
TN113836214	352	914	240	14
TN114028222	356	711	247	22
TN11403910	356	991	243	/
TN114624223	373	622	263	23
TN114630214	373	762	262	14
TN114724223	374	610	262	22
TN115024222	383	622	254	23
TN11601110	406	292	244	/
TN11601110	406	292	245	/
TN11601110	406	292	291	/
TN11601210	406	305	292	/
TN116028214	406	718	291	14
TN116034214	406	876	291	14
TN116030214	408	762	291	14
TN116034214	408	864	292	14
TN11662010	422	508	269	/
TN11752614	445	660	356	/
TN11752610	447	660	311	/
TN11762610	447	660	356	/
TN117624214	448	610	311	14
TN11872010	476	508	356	/
TN11872510	476	635	356	/
TN11921010	489	263	327	/
TN11921310	489	351	327	/
TN12202410	559	629	395	/
TN12222510	565	635	448	/

>Application:
Widely used in central air conditioning, gas turbine power plants, oxygen plants, steel mill blast oxygen station, furnace blast air station, power plant ,gas turbine air intake applications. Company Profile >Company Show
Thenow Purification Technology has focused on air filtration for many years: 16+ years for HVAC air filter and 21+ years for Industrial dust collector filter cartridges. We hope to bring the world more clean air with quality and environmental friendly filters.
>Certificates and Test reports
Standard is a ruler for the filters from all over the world. We have been trying to meet the most strict standard. Our HVAC air filters have been certified by CE, SGS and tested according to EN779, EN1822, Ashare and the latest ISO16890. You can rest assured when make a decision to buy. Click here if you want to see details.
>8+ years exporting experience
We have been to Powtech In Nurnberg in 2014, Achema in Frankfurt in 2015, AHR in Chicago in 2018, Chilliventa in Nurnberg in 2018. And our filters have been to all over the world: Europe, Middle East area, Africa, South Asian area, South American area and North American area.
>Professional Packing and Container Loading
Packing is important especially for carboard frame disposable filters and HEPA filters with glassfiber filter media. So we are very careful with it.
