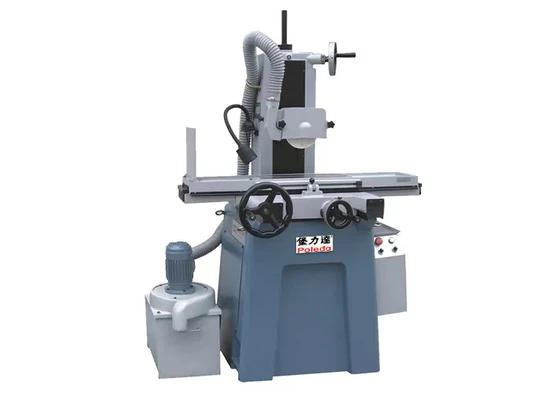

Poleda Multifunctional High Precision Surface Grinder for Factory Price and Tooling

Product Description

Product Description
Product Parameters
Mechanical Properties
Machine Structure: The main castings of the machine are crafted from premium-quality cast iron, meticulously annealed to eliminate internal stress, ensuring unparalleled precision and rigidity while significantly extending the machine's lifespan. Slide Way: The machine features a double V slide way, both left-right and front, coated with wear-resistant resin TI URCITE-B. This, combined with precision hand-scraped surfaces, ensures exceptionally smooth sliding and superior wear resistance, making it ideal for forming and grinding applications.
Cylindrical Straight Spindle: Equipped with a P4 ultra-precision angular roller bearing, this spindle offers low noise, minimal vibration, and large torque during high-speed rotations. It is perfectly suited for heavy-duty cutting and various types of forming grinding, delivering outstanding performance and reliability.
Automatic Lubrication System: This machine incorporates a sophisticated circulating automatic lubrication system. As soon as the main spindle starts, the lubricating oil circulates automatically, providing forced lubrication to every screw and slide. This significantly reduces the wear and tear on the slide ways. An oil mirror installed above the column allows for easy monitoring of the lubrication status.

Product Name
Product Name		Grinding machine
Product model		M618/618/618S/618H
Product technical parameters
	1 Table size		150*450MM(6*18'')
	2 Maximum grinding length		475MM(18-3/4'')
	3 Maximum grinding width		160MM(6-1/3'')
	4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
	5 Standard disk size		150*350MM
	6 Left and right feed/manual stroke		485MM(19'')
	7 Front and rear feed/manual stroke		160MM(7'')
	8 Hand wheel feed (per turn)		5MM(0.2'')
	9 Hand wheel feed		0.02MM(0.001'')
	10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
	11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
	12 Spindle speed (50/60HZ)		2800RPM
	13 Spindle motor		1.5HP
	14 Weight (approximate)		800kgs
	15Machine size (L * W * H)		1350*1050*1850MM
	Grinding machine configuration	Accessories name and specification		quantity
	Standard parts for machine tools	1,Grinding wheel and flange		1
		2,Wheel removal wrench		1
		3,Hexagonal wrench		1
		4,Leveling screws and foot pads		1
		5,Grinder guide oil		1
		6,Toolbox and adjustment tools		1
		7,Hanging rings		1
		8,Grinding wheel		1
	Special parts for machine tools	9,Grating electronic ruler		1
		10,Detail disk		1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The MOQ depends on your specific requirements for color, logo, etc. For some standard items that we have in stock, the MOQ is just 1 set.
2.How to control the quality of the products?
A. We have always placed great emphasis on maintaining high-quality standards. Additionally, our guiding principle is to providecustomers with better quality, competitive pricing, and exceptional service.
3.What's your main products of your company?
A: We specialize in various types of machinery, including CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and more.
4. What are your trade terms?
A: Ex-works, FOB, CFR, and CIF are all acceptable.
5.What's the Payment Terms?
A: T/T, 30% initial payment upon order, 70% balance payment before shipment.
6.What CNC system do you use?
A: FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN. It depends on your preference.
7.How can I choose the most suitable machines?
A: Send us the product drawings and application details, and we will recommend the most suitable machines for you.
8.What kind of package do you offer?
A. Normally packaged in plywood cases to ensure all goods are in excellent condition. Custom packaging is also available.
9.Can your plant do OEM?
A: Yes, it is no problem. We can do both OEM and ODM for any customer. 10.How about the warranty?
A: The warranty period is one year after delivery. Even beyond this period, we will provide lifetime service for the machines.
