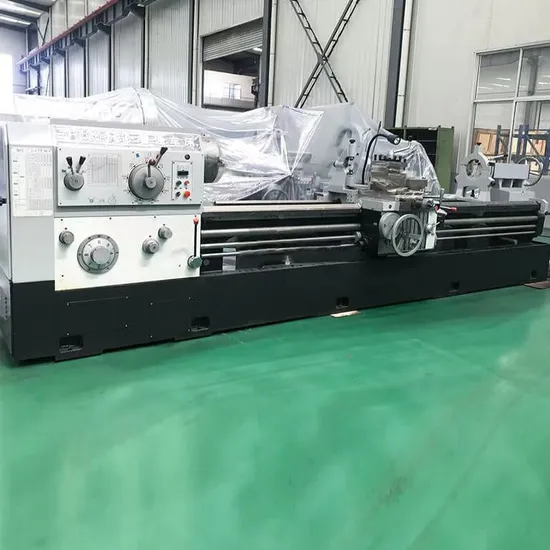

Cw6163 Series Large Heavy Duty Horizontal Manual Lathe Hydraulic Control Metal Horizontal Flatbed Manual Lathe

Product Description

Overview
CW SERIES ENGINE LATHE-CW61160 Manual Lathe Machine Integral machine bed adopts high strength iron to realize high rigidity and precision.Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance. Headstock gears hardened and precision ground to achieve high precision and low noise. It can process materials such as cast iron, steel and non-ferrous metals, etc.
It can turn end faces, internal and external cylindrical surfaces, conical surfaces and other rotating surfaces, and process all kinds of metric, imperial, modulus and diameter section threads, and it can also be used for drilling, reaming and pulling oil grooves and so on. Standard configuration
3-jaw chuck(Ф315mm) 4-station manual toolpost
Work lamp
Coolant system
Standard safety cover
Tail stock
Pad iron
Tool box
Operation manual
Optional configuration
Follow rest Center rest
Digital readout
Grinding attachment
Protective cover (lead-screw, chuck, tool post)

Specifications

SPECIFICATION OF LATHE MACHINE
ITEMS		UNIT	CW6163B Lathe
Capacity	Swing over bed	mm	Φ630
	Swing over cross slide	mm	Φ350
	Distance between centers	mm	1500/2000/3000/4000mm
	Width of bed way	mm	550
	Max. load capacity	T	3
Spindle	Spindle bore	mm	Φ104
	Spindle nose taper	-	Metric 120 MT#5
	Spindle nose type	-	A2-11
	Spindle speed steps	-	FWD.18 steps
	Spindle speed range	rpm	7.5-1000
	Chuck size	mm	Φ1000
	Chuck type	-	3-jaw manual
Turret	Turret type	-	Manual turret 4 position
	Tool shank size	mm	30*30
Feed	X axis travel	mm	320
	Z axis travel	mm	1350/1850/2850/3850
	X axis feed grade/range	mm/r	64/0.05-0.912
	Z axis feed grade/range	mm/r	56/0.1-12
	X axis rapid traverse speed	mm/min	2300
	Z axis rapid traverse speed	mm/min	4000
	Metric thread grade/range	mm	44/1-120
	Inch thread grade/range	T.P.I.	31/28-3/8
Tailstock	Tailstock quill diameter	mm	Φ160
	Tailstock quill taper	-	MT#6
	Tailstock quill travel	mm	250
Motors	Main spindle motor	kW	11
	Rapid traverse motor	kW	1.1
	Coolant pump motor	kW	0.125
Dimensions	Width x Height	mm	1400×1450
	Length	mm	3800/4300/5300/6300
Weight	Net weight	T	11.2/11.6/12.3/13
