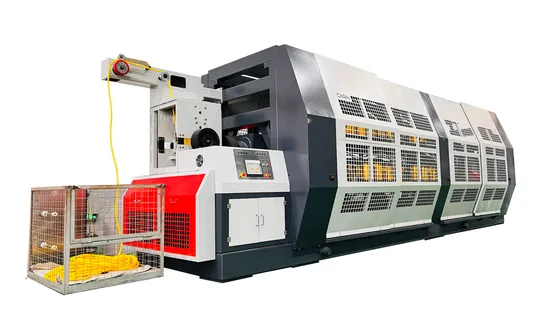

Cnrm PLC Touch Screen 3mm-40mm Longline Endless Plastic Rope Making Machine

Product Description

CNRM High Quality PLC Touch Screen 3mm-26mm Longline Endless PP PE Cotton Monofilament Danline Raffia Plastic Rope Making Machine
1.Performance & Advantages for CNRM W-series rope machine
(1)CNRM rope machine W series combinined strander and rope-layer
(2)Products finished rope in any length
(3)Three strand and four strand models
(4)Set lay length electronically
(5)Exteral take-up for coils ,reels ,hanks ,or loose in cans or boxes
(6)For production of rope from natural or synthetic fiber yarns
(7)Adaption of machine to accommodate other package dimensions haul-off system for take-up
2.Suitable rope
(1). Rope diameter: from 3mm up to 40mm.
(2). Suitable material: HDPE, PP, PET, nylon, polyester, cotton, sisal, jute, coconut, banana, recycled tape,nonwoven tape, etc. monofilament, multifilament, natural fiber, the machine has wide application scope.
(3). Rope structure: 3 strands, 4 strands, 4 strands with the core.
3.Complete production line for pp pe monofilament/raffia/danline rope
(1). PP PE monofilament /raffia/danliine yarn extruder machine
(2). Ring twister machine for first twisting of rope.
(3). Rope making machine for making 3 strands or 4 strand rope.
(4). Rope rewinder machine for reel, coil, hank packaging.
(5) High speed inflow twister for twine twisting and spooling at same time
(6)High speed ball winder for raffia ball production
(7)High speed hank winder
4.Plastic Rope Making Machine Parameters

Item	HDTM-M22	HDTM-M33	HDTM-M44	HDTM-M55	HDTM-M66	HDTM-M77	HDTM-M88
Rope Range	3-6mm	3-10mm	6-14mm	12-22mm	18-26mm	22-32mm	32-40mm
Lay Range	18-30mm	15-38mm	20-50mm	32-78mm	40-105	45-130	83-121
Power	7.5kw	7.5/11kw	11kw	15kw	22kw	30kw	45KW
Take-up capacity	12kg	25kg	50kg	60kg	70kg	130kg	220kg
Size of pay-off bobbin	175/225*300mm
Qty of 8" bobbin	2/3*3/4	6/8*3/4	18/22*3/4	26/32*3*4	34/46*3/4	54/68*3/4	320pcs
Machine weigth	2500kg	3500kg	5700kg	7900kg	11000kg	14000kg	30000kg

5.Plastic Rope Making Machine Key Features -Power transmission by timing belts.
-Auto stop after yarn breakage to control wastage.
-Digital length counter meter.
-Door Sensor.
-A.C. frequency drive.
-Direct coiling head.

6.Detailed Images
(1) Endless Longline Rope machine please tell your final rope diameter range,we are so pleased to recommend right twist rope machine models to you.
(2) CNRM T-series Rope machine
(3)CNRM HDTM-series Rope machine
7.Installation at customer's factory and delivery
9. CNRM rope machinery
10.Related Products
(1)PP/PE/HDPE/PET monofilament/danline rope production line
(2)PP/PE/HDPE Raffia ball/spool rope production line
