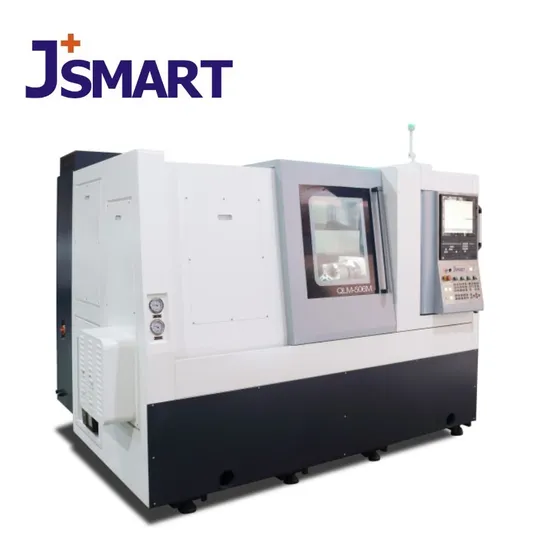

QLM-506M S;ant bed integrally formed rigid structure four axes milling and turning

Product Description

Parameters

QLM-506C
	Max. swing diameter over bed	mm	∅500		Spindle nose	-	A2-5
	Max. swing diameter over camiage	mm	∅450	Spare	Spindle diameter	mm	∅170
	Max. turning diameter	mm	∅420	axis	Bar specification (Standard/Optional)	mm	∅45
	Interference diameter of adjacent tool machining	mm	∅200		Max. stroke of counter-spindle	mm	560
	Max. machining length	mm	520		Supporting chuck	inch	6"
Machining	Max. stroke of Z axis	mm	580		Motor power (continuous / 30min)	Kw	5.5/7.5
capacity	Max. stroke of X axis	mm	270		Max. speed	rpm	6000
	Max. stroke of Y axis	mm	+/-50		spindle motor torque (rate/max)	Nm	35/47.7
	Motor power of Z1 axis	Kw	3		spindle motor current (continous/30min)	A	32/48
	Motor power of Z2 axis	Kw	2.2		C-axis resolution	1/n	1024/32768
	Motor power of X axis	Kw	2.2		Interface Spec.	-	BMT55
	Motor power of Y axis	Kw	3		Center height	mm	100
	Rapid traverse of X / Z1 / Z2 axis	m/min	25	Tool	Cutter diameter	mm	∅330
	Rapid traverse of Y axis	m/min	15	turret	Numbers of tools	pcs	12
Control system			MITSUBISHI M80A		Shank diameter of square tool holder	mm	25
Spindle	Spindle nose	-	A2-5		Shank diameter of boring tool holder	mm	40
	Spindle diameter	mm	∅170		Numbers of driven tools	pcs	12
	Bar specification (Standard/Optional)	mm	∅45		Driven tool lock	-	ER25
	Supporting chuck	inch	6"		Driven power of driven tool motor	kw	3.7
	Motor power (continuous / 30min)	Kw	5.5/7.5		Max. Torque of power tool motor	Nm	23.6
	Max. speed	rpm	6000		Max. speed of driven tool motor	rpm	6000
	spindle motor torque (rate/max)	Nm	35/47.7	Appearance	Machine tool appearance	mm	2850*2110*2090
	spindle motor current (continous/30min)	A	32/48	& Weight	Machine tool weight	Kg	5300
	C-axis resolution	1/n	1024/32768

QLM Series Characteristics
QLM-506 / QLM-506M / QLM-506C
QLM-508 / QLM-508M / QLM-508C
QLM-510 / QLM-510M / QLM-510C
* The machine integrates multiple functions including turning, milling, boring, and tapping, and combines C axis, Y axis and spare axis, which effectively reduces the produce changeover time, avoid artificial error, and simplify the fixtures.
* Adopt standard automatic receiver, optional automatic feeder, and chip cleaner to improve machining efficiency.
* QLM series machine adopts orthogonal Y-axis design, which has higher precision than the difference-compensated Y-axis design. The Y-axis stroke reaches 100mm. It has strong machining capability and low interference.
* Because of the Y-axis function, the machining mode of QLM series products is in the same way as a machining center equipped with a fourth-axis rotary table. (X,Y, Z axes are the same as the X, Y, Z axes of the machining center, and C axis is the same as the four axis rotary table);
* The integration of turning machine and machining center into a machine tool will greatly save manpower, reduce machining time, floor area and the purchase cost of machine tools and fixtures, as well as reducing various uncertainties caused by multiple times of clamping and handling of workpieces.
Base
Integrally formed rigid structure
Add specific trace elements to improve stability
30-degree inclined bed
Easy for chips removal, close-distance operation, and handling
BMT Driven Tool Turret Series
Achieve a quick tool change for a cycle (1# to 12# tools) within 8 seconds.
Have more stable tool locking mode, a repeatability of +/-0.002mm, and positioning accuracy of +/- 0.005mm.
Have a driven tool holder speed of up to 6,000 rpm, providing a better torque and machining efficiency.
Have a perfect U-shaped design to make center of gravity more concentrated and realize higher stability and higher precision.
Have a dual-motor design to realize fast two-way tool selection and forward and backward machining.
Adopt three-piece clutch locking device to provide extremely strong hydraulic locking force.

CNC system
The Mitsubishi system is the best choice to provide you with stable multi-axis combined machining, and it can optimize your product process while ensuring better product consistency, improving your machining effciency.
Meanwhile, its after-sales service is as timely and efficient as expected by Jhenjet Intelligent.
Hydraulic System
Korea or Japanese hydraulic system is adopted to improve equipment stability.

Spindle
The spindle is supported by front three and rear two roller bearings to improve the rigidity of the spindle and reduce the runout of the spindle.
The spindle has a strong hydraulic clamping force to facilitate the replacement of collets and chucks.
Screw rod and guide rail
The screw pitch in X and Z directions is perfectly matched to create a more perfect appearance effect and an excellent rapid feeding.
JLM-508M Internal Workpiece
Company Profile
Jhenjet Intelligent has a history of 30 years since its establishment in Taiwan. It has focused on the machining and the manufacturing of key parts and components of machine tools. It also serves as an agent for many Japanese enterprises.
Since it was put into operation in Guangdong Province in 2014, Jhenjet Intelligent has been committed to become a
manufacturer and supplier of specialized turning & milling composite center.
In 2018, it passed the national high-tech enterprise certification and had more than 10 machine tool patents. At present, its eight products have passed the high-tech product certification in Guangdong.
Jhenjet Intelligent has established a complete production and manufacturing system, and implemented the procurement, assembly and inspection processes in a strict manner. Welcomed by the majority of customers, its products are and widely used in the precision and composite machining in aerospace, transportation, optical communications, molds, electronics, watches and other industries.
It has become an influential high-end turning & milling composite brand in South China and the whole country.
Jhenjet Intelligent provide high-quality CNC lathe machine tool/ CNC Turning & milling composite machine, make the production become more automatic and intelligent, and create maximum benefits for employees, customers, industries, and country.
We always believe in and pursue the core value of "Excellet Design, High Quality and Considerate Services" of Jhenjet Intelligent. Ever high quality product is based on an excellent design and will create more value to customers together with value-added service.
In the future, Jhenjet Intelligent will continue to adhere to the concept of sustainable operation, with "Integrity and Responsibility", "Full participation", "Pursuit of Excellence" and "Customer Satisfaction" as the business objectives.
History
In 1994
It was founded in Taiwan and started to undertake the production of spare parts for many Japanese companies.
In 2012
It successfully developed a CNC turning & milling composite machine in Taiwan.
In 2014
It established Dongguan Jhenjet Intelligent Technology Co., Ltd., and was dedicated to the R&D, manufacturing and application of the turning & milling composite machines for the markets in China and Southeast Asian countries.
In 2015
Its servo-powered driven-tool turret and row-turning series turning & milling composite machine / CNC machining machine were marketed and won extensive praise from the market.
In 2016
It set up an application department to quickly respond to customer needs and upgrade customer service to strategic partnership.
Its Y-axis + dual-spindle series of turning & milling composite machine tools were marketed.
In 2017
It was renamed Guangdong Jhenjet Intelligent Technology Co., Ltd.
It was granted four national utility model patents and the certificates of four high-tech products.
In 2018
Shandong Jhenjet Intelligent Technology Co., Ltd. was established to provide faster and direct services to the northern market
It set up a R&D center was established to complete the independent development of tail-mounted motorized spindle of CNC turning machine.
Set up application center and its own machine tools were used to machine and product the high-precision parts.
It passed the national high-tech enterprise certification.
It was granted six national utility model patents and the certificates of four high-tech products; and submitted the application of two products for a patent for invention.
In 2019
LST LST series products were marketed.
The buffing machine assembly workshop of Guangdong Jhenjet was expanded to improve its production efficiency.
In 2020
JLM-1012 1000mm Launch model JLM-1012 with machining length 1000mm.
