Rubber Converyor Sheet Film Rubber Belt Machinery Water Cooling Line Batch-off Machine

Product Description

I. Brief company profile
1.23 years on batch off rubber sheet/belt mixing production line direct manufacturer and exporter.
2. Delivery within 35 days.
3. Safety wood or plywood crates packing.
4.With all the certificate abroad and domestic, which can fully support your purchasing overseas.
5.Playing a important role and selling well in Chinese domestic market. Sales are increasing year by year.
6. Sell to over 80 countries overseas.
7.Provide the whole rubber sheet/belt mixing production line which includes rubber sheet cutting machine→kneader/banbury mixer machine→hoist machine→open rubber mixing machine→rubber sheet cooling machine→rubber sheet.
8.Best service as you required.
9.100% original.
10. One-stop rubber machinery solution in Qingdao Boria.
II. Introduction

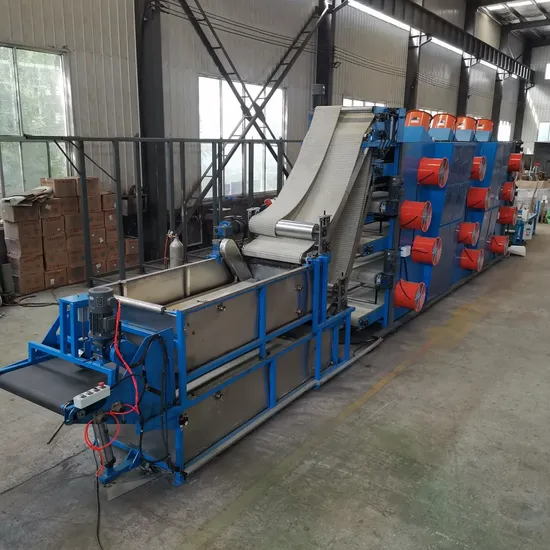

1. The batch off unit take off adopts steel conveying rollers, equipped with printer and slitter. The take-off and lifting device are driven by a common AC inverter motor. The conveying speed ID adjustable.
2. The sheet is uniformly coated with the lubricator by dipping without polluting the environment. Its cooling effect is better than the spraying.
3. The hanging up area is fully closed, which adopts the blower to blow the sheet at a slant. So it improves the air flowing direction and cooling effect.
4. The electric control system adopts a reliable and automatic PC
III. Control system
1)Electrical control system contents 1 set of control cabinet,1 set main operational console,1 set of swing rubber sheet operation box,emergency stop button and so on.
Control cabinet installed on the ground side of the access device
master operational console installed on the ground side of the access device.
Swing device operation box installed side of the swing rubber device.
2)the whole line adopt PLC automatic control. The speed of conveying rubber sheet adopt variable-frequency speed control system. It could not only single action speed control,but also control the speed of setting linkage following the auxiliary machine speed.
3) the whole line adopt manual and automatic control. Manual control is mainly used to debugging, troubleshooting.
4)air bellows control modee adopt group control. Each group motor has motor over-current protection circuit breaker. When one air bellow breakdown and give breakdown signal,the unit that the air bellow is in will stop blow. It could only maintain the air bellow with breakdown.
5)rubber sheet enter into the entrance of the air bellow with alerting signal when stopped up by the rubber. Every operation box is with emergency stop button to be used by the operators on the scene
6) low voltage electrical :Can be purchased according to customer needs
IV. Picture For Reference
1) Hanging rod type - mainly used for cooling rubber sheet with 4-12mm thickness
2) Mesh belt type - mainly used for cooling rubber sheet with 1-8mm thickness
3) Cooling drum type - mainly used for cooling rubber sheet with 1-6mm thickness
V. Technical parameter

Parameters/ Version	XPG-600-700	XPG-800-900
Film specification	(4-12)*600-700mm	(4-12) *800-900 mm
Front take-way conveyor belt max linear velocity	400m / min	400m/min
Rubber strip hanging barwoving speed	0.117-2.2 m/min	0.117-2.2m/ min
Axial Fan	0.37kw 5760 cubic meter/ h	0.37kw 5760 cubic meter/ h
Swing range and frequency	1.3m 10-16times/ min	1.3m 10-16 times/ min
Rubber strip temperature after cooling	No higher than 5 degree Celsius above room temperature	No higher than 5 degree Celsius above room temperature
Speed-adjusting frequency motor of lifting swing device	XWD 1.5-3-1/11	XWD7.5-7-1/43
Speed-adjusting frequency motor or rubber swing device	XWD 1.1-5-1/87	XWD 1.1-5-1/87
Rubber bar pitch	160 or 101.6	160 or 101.6
Max hanging height of rubber strip	1400mm	1400mm

FAQ:
1.Q:Are you a factory or trading company?
A:We are a professional manufacturer and running our own factory for more than 10 years .
2.Q:Where is your factory?How can I visit ?
A:Our factory located in qingdao city.You can fly to QINGDAO LIUTING airport,then we can pick you up to our factory for your visiting.We are looking forward to your visiting.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines have passed CE,ISO,SGS certification,with best quality and reasonable price.All our machines have 1 year guarantee, will be provided for a lifetime maintenance.
4.What's your payment term?
A:Common is 30% deposit by T/T,the balance paid against shipping documents
Or L/C at sight.
5.Q:Can you design new product for us?
A:we have a professional development team that can make new products according to your requirements.
6. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.

7. What does your factory do regarding quality control?
We pay much more attention to the quality controlling from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.

8. What's the machine quality guarantee?
we provide one year warrenty for our machines.We choose the world's famous brand of components to keep our machine in perfect working condition.

9. Are you able to provide the installation and commissioning of machines overseas? How long will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.

10. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.

Packaging

Equipment painting completed before delivery, and then wrapped with stretch film, to protect the painting surface, we use wooden packaging outside.The key parts of the machine, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
There are 15 experienced engineers and 108 skilled workers in our company, guaranteeing delivery on time as stipulated in the contract. At the same time, the company established a long-term cooperative relation with Cosco, for ensuring the goods arriving port on time.
Our Services

Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
In the process of production, we will take photos and send to customers for their track the progress.
Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
We supply overseas engineer service and do our best to teach your workers operate the machine themselves.
In addition
Our machineries have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries.
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
