V Type Mixer Machine for Pharmaceutical Chemcial Foodstuff

Product Description

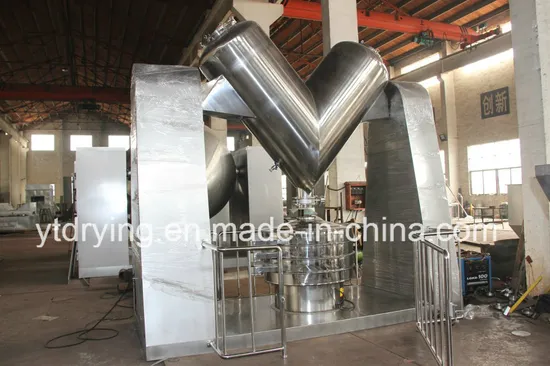

V Type Mixer Machine for pharmaceutical chemcial foodstuff
Description
The Blending tube structure of V type blending equipment is unique. It is made up of stainless materials. Both inside and outside walls are polished. There is no internal transmission mechanism inside V type blending equipment and it meets the GMP standard.
Application
V type blender machine is widely used in pharmaceutical, chemical and food industries. It is suited for blending more than two dry powder or granular materials.
Features
1. V type blending machine features beautiful shape, uniform mixing and wide application.
2. In accordance with the user's requirements, we can supply compulsory mixer for the powder and lump materials.
3. Stirring device can be added into V type blending equipment to break easy-caking materials and further strengthens the mixing effect.
Parameters of V Type Mixer Machine

Model & specification	VHJ-0.18	VHJ-0.3	VHJ-0.5	VHJ-1.0	VHJ-1.5	VHJ-2.0	VHJ-2.5	VHJ-3.0	VHJ-4.0	VHJ-5.0	VHJ-6
Productive capacity (kg/time)	72	120	200	400	600	800	1000	1200	1600	2000	2400
Model of vacuum pump	W2	W2	W2	W3	W3	W3	W3	W4	W4	W4	W4
Feeding time (min)	3-5	3-5	4-6	6-9	6-10	8-13	8-15	8-12	10-15	15-20	18-25
Mixing time (min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10	8-12	8-12	8-12	8-12
Total volume (m3)	0.18	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0	5.0	6.0
Stirring speed (r/min)	12	12	12	12	12	12	12	10	10	10	10
Power of motor (kw)	1.1	1.1	2.2	4	4	5	7.5	7.5	11	15	18.5
Rotating height (mm)	1580	1760	2400	2840	3010	3240	3680	3700	4350	4800	5300
Weight (kg)	280	320	550	950	1020	1600	2040	2300	2800	3250	3850

Note: Basically, loading factor is 0.4 - 0.6. In the above table, production capacity is calculated according to loading factor 0.5 and material density 0.8.
