ASTM D4294 X-ray Fluorescence Sulfur Analyzer

Product Description

Product Description ASTM D4294 X-ray Fluorescence Sulfur Analyzer

Application Area
(1) It can be used to determine mass% of total sulfur in the crude petroleum, petroleum, heavy oil, diesel oil, gasoline, and naphtha.
(2) It can be used to determine total sulfur content in the products of coal chemical industry, such as primary benzene.
(3) It can be used to determine total sulfur or sulfide in other liquid or solid powder samples.


Technical Parameters

(1) Measuring range:7ppm to 5% (2) Repeatability (r): <0.02894 (X+0.1691) (3) Reproducibility (R): <0.1215(X+0.5555) (4) Detection limit: 10 ppm (5) Oil sample quantity: (2~3) ml (it is equal to sample depth of 3 mm-4mm) (6) Measurement time: it can preset 60, 120, 240, 300, and 600 s at random (7) It can make measurement automatically for single sample. Repeat times: can set 2, 3, 5, 10, and 50 at random; it will show average value and standard deviation at end of measurement. (8) Calibration curve numbers: it can save 9 calibration curves. 5 pieces of them are unary linear equation and 4 pieces of them are unary quadratic equation. (9) Working condition: Ambient temperature: 5~40ºC Relative humidity: ≤85% (30 ºC) (10) Power supply: AC 220V±20V, 50 Hz; Rated power: 30 W (11) Dimension and weight: 468mm×368mm×136mm; 13 kg

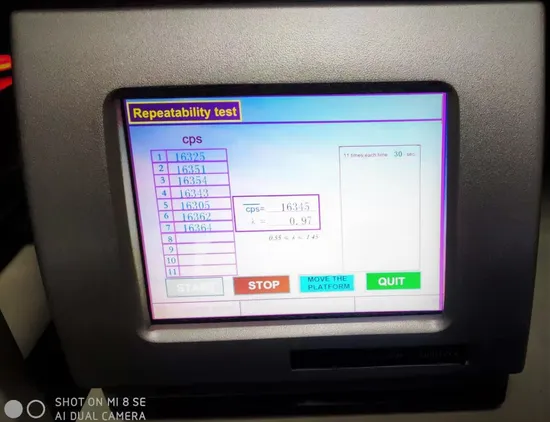

Pictures for ASTM D4294 X-ray Fluorescence Sulfur Analyzer
Related Oil Testers 1.Karl Fisher Oil Water Content Tester BLS-63042.Digital Oil Moisture Meter BLS-D63043.Petroleum Products Kinematic Viscosity and Viscosity Index Tester BLS-4454.Digital Kinematic Viscosity Meter BLS-D4455.Fully Automatic Petroleum Products Acidity Meter BLS-9746.Cleveland Open Cup Flash and Fire Point Tester BLO-927.Pensky-Martens Closed Cup Flash Point Tester BLC-938.Pour Point and Cloud Point Tester BLS-979.Petroleum Products Density Meter BLS-129810.Copper Corrosion Tester BLS-13011.Petroleum Products Aniline Point Tester BLS-61112.Petroleum Products Colorimeter BLS-150013.Petroleum Products Carbon Residue Tester (Micro Method) BLS-453014.Petroleum Product Vapor Pressure Tester (Reid Method) BLS-323115.Total Acid Number and Total Base Number TAN/TBN Tester BLS-289616.Petroleum Products X-ray Fluorescence XRF Sulfur Analyzer Sulfur BLS-429417.Petroleum Products Online Moisture Meter BLS-PPM18.Online Moisture ppm Meter/ Particle Counter/ Pollution Degree Analyzer NAS-0119.Petroleum Products Saponification Number Tester BLS-9420.Micro Coulometry Sulfur and Chlorine Content Tester BLS-312021.Ultraviolet Fluorescence Sulfur Analyzer BLS-545322.Conradson Method Petroleum Products Carbon Residue Tester BLS-18923.Ramsbottom(Electric Furnace) Method Petroleum Products Carbon Residue Tester BLS-52424.Hydrogen Sulfide in Liquefied Petroleum (LP) Gases Tester (Lead Acetate Method) BLS-242025.Hydrocarbon Types in Petroleum Products Tester by Fluorescent Indicator Adsorption BLS-1319
Packaging & Shipping 1. Outside package: Standard export packing or neutral packing if needed, carton box, wooden case or upon request, packing carefully.
2. Inside package: strength film and foams.
Shipping Method: Air / Sea / Express(UPS, FEDEX, DHL, TNT, EMS, etc)
Company Profile Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include instrument and apparatus, mechanical machinery such as liquid purification equipment, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc.
Lab Testing Machines in stock
FAQ 1. What's the payment method?Payment can be done by cash T/T, L/C, Western Union, ****** Trade Assurance,etc.2. How long is the delivery period?Generally it takes about 10 working days for production and then the delivery will be done timely.3.What's the package made of?The package is made of international export standard wooden case.4.What's the delivery method?By train, by air, by sea, by truck, by express(TNT, DHL, FedEx, Ups, etc).5. How long is the guarantee period?The guarantee period is 2 years due to the product quality problems itself.6.What services can you provide?Online support through email, telephone, Whatsapp or other communication method; onsite taining and installation if you need; filed maintenance and repair, technical video support, etc.
