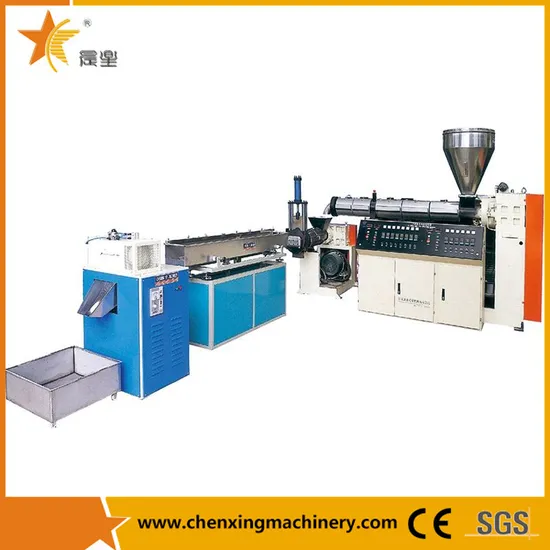

PP/PE Plastic Granulating/Pelletizing Production Line

Product Description

PP/PE plastic granulator production line
Product Description
Features:
1. The production line consists of one single forced feeding extruder, one single screw extruder, vacuum air venting device, fast net changing device and granule cutting device. The feeding part of the extruder is enlarged. The compressor has large volume compression ratio. The vacuum suction device at the connection parts can effectively exhaust the volatizing air in the material. The waste materials can be extruded directly.
2. This line is not only able to recycle the common plastics, but also can recycle the foamed PET, PS, PP, EVA, etc. Different screws are available to the different material, output.
3. Hard teeth surface, special reduction box (gear box); 38CrMoAIA nitriding barrel and screw; vacuum suction type exhaust ensures pore-free granules; non-stop net changing device; cooling water tank; blow dryer; rotary granule cutter. There is no need to add drying process; the pelletizing is working under normal temperature, one-step foamed, low costs, and yields good economic returns.
For the recycling of PE, PP films, the capacity is from 120kg/h-160kg/h.
For PP PE chips, the capacity is from 150-550kg/h.
Applications:
Applicable plastic materials:PP,HDPE,LDPE,LLDPE,etc.
Material shapes:Film,bag and flake
Material types:pe bag,printed LDPE film,film (rolls,loose,bundles),agricultural film waste,foamed plastics(EPS) and raffia.
Note:Depending on material property,various downstream equipment are available

Characteristics
This production line is composed of special designed agglomerator, single-screw extruder, screen changer, dryer, vibrator and packing system, etc.
1. Greatly increase output
2. Continuous production
3. Flexible pelletizing style
Product Parameters

Extruder	SJ90+SJ90	SJ120+SJ120	SJ150+SJ150	SJ180+SJ180	SJ200+SJ200	SJ250+SJ250
Main Motor Power	75kw+18kw	132kw+30kw	160kw+55kw	185kw+75kw	220kw+90kw	280kw+110kw
Production capacity	150-220kgs	200-300kg/h	300-500kg/h	450-650kg/h	600-800kg/h	700-1200kg/h

Detailed Photos
Hot sale products


About Us
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.Q: What kind of certification do you have?A:Our products have obtained ISO9001 and CE certification,the quality can be guaranteed.We focus on the field of extrusion machine,and aim to be the best manufacturer of this field.Pls think about the following questions and then send your messeage to my email. And we will offer you our quotation ASAP.1.The pipe diameter?
2.Pipes types(powder or granule)?
3.The voltage?
