China Supplier High Quality Valve K25jk-25wht 5/2-Way Pnumatic Valve Poppet Valves Dia G1" Huatong Pneumatic

Product Description

Product Description

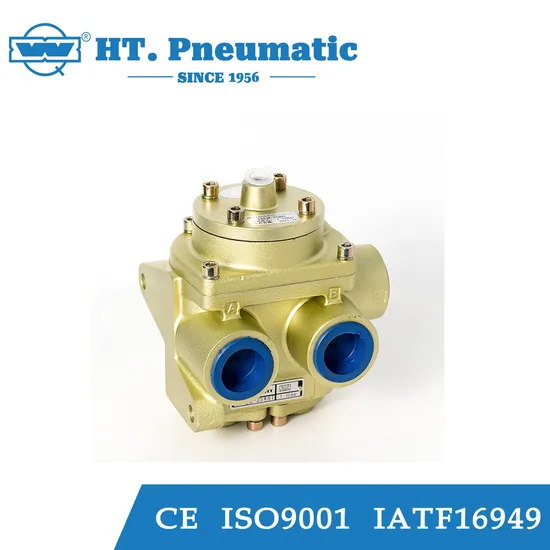

K25JK-25WHT series is pipe fitting shut-off directional valves 5/2 way. Streamlined structure, reliable action easy of maintenance, and especially suited to tough work conditions.Two types: electrically controlled and pneumatic controlled.Poppet Valves Inline Mounted High Flow Rate.
HT is the abbreviation of Wuxi Huatong Pneumatic Co., Ltd. You can omit this logo when selecting your model.
Specification:

type		K25J- 8WHT	K25J- 10WHT	K25J- 15WHT	K25J- 20WHT	K25J- 25WHT	K25J- 32WHT	K25J- 40WHT
Item
Flow rate(m3/h)		5	7	10	20	30	40	50
Effective sectional area(mm2)		20	35	60	120	190	300	400
Leakage rate(cm3/min)		≤50	≤100		≤200		≤300
Direction diverting time(sec)		≤0.04	≤0.06		≤0.10		≤0.15
Switch-over frequency Hz		≥10	≥8		≥4		≥3
Working pressure(MPa)		0.2~0.8
Voltage(V)		AC:380,220,110,36: DC:220,110,24
Working temp. (ºC)		-5~50

Outlook & Dimension:

Type	Dia	Port Size	A	B	C	D	E	F	G	H	R	S	X	V	L	O
		G
K25J-15W	Ø8	G1/4	180	99	94	45	32	31	Ø10	55	44	19	16	28	90	G1/2
	Ø10	G3/8
	Ø15	G1/2
K25J-25W	Ø20	G3/4	222	127	142	52	47	52	Ø10	78	58	21	19	42	132	G1
	Ø25	G1
K25J-40W	Ø32	G1¼	285	155	220	69	55	117	Ø10	140	80	36	35	52	187	G2
	Ø40	G1½

Instudry Application

Company Profile
Established in 1956, Wuxi Huatong Pneumatic Manufacture Co., Ltd. is a strong and reliable partner for various industries. With our innovative R&D team, professional technical support team, and motivated sales team, we have been producing and delivering a large number of different valves, cylinders, air-filter components, and accessories to Germany, USA, Iran, Singapore, Russia Federation over 60 years. Huge investments in advanced technology of production and testing equipment, software and organization structure support us to offer top quality and good service. We are committed to be a leading provider and supporter to all our customers.
Huatong Pneumatic produces high-quality pneumatic and hydraulic cylinders as well as pneumatic valves, complete pneumatic systems, pneumatic / electrical stainless steel cabinets in all sizes and various custom-made accessories and spare parts according to our customer needs. We have satisfied customers for our custom-made pneumatics in China, USA, Germany, Italy, Holland, Australia and various other countries.
