Universal Metal Drill Machine Price Z3050X16B Borehole Radial Drilling Machine
Basic Info.
Model NO.
Z3050X16B
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
50mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Name
Universal Metal Drill Machine Price Z3050X16B Bore
Spindle Speeds(r.p.m)
35,60,105,170,290,395,540,710,1310
Spindle Speed Steps
9
Spindle Feeding Range(mm/R)
0.1,0.16,0.22,0.25,0.35,0.56
Spindle Feeding Steps
6
Max.drilling dia (mm)
50
Spindle travel (mm)
270
Spindle cone(MT)
5
Transport Package
Wood Packing
Specification
2170x950x; 2450
Trademark
LUZHONG MACHINE
Origin
China
HS Code
8459290000
Production Capacity
100
Product Description
Universal Metal Drill Machine Price Z3050X16B Borehole Radial Drilling Machine Product DescriptionThe main performance characteristics:
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic retraction
Strengthening spindle Product Parameters
Product main technical parameters
| SPECIFICATIONS | Z3050×16B |
| Max.drilling dia (mm) | 50 |
| Distance from spindle nose to table surface(mm) | 260-1050 |
| Distance between spindle axis and column surface (mm) | 360-1600 |
| Spindle travel (mm) | 270 |
| Spindle cone(MT) | 5 |
| Spindle speeds range (r.p.m) | 35,60,105,170,290,395,540,710,1310 |
| Spindle speed step | 9 |
| Spindle feeding range(r.p.m) | 0.1,0.16,0.22,0.25,0.35,0.56 |
| Spindle feeding step | 6 |
| Rocker rotary angle (°) | ±90° |
| Main motor power (kw) | 4 |
| Maximum resistance to the spindle (N) | 16000 |
| Movements motor power (kw) | 1.5 |
| Weight (kg) | 2600 |
| Overall dimensions (mm) | 2170×950×2450 |

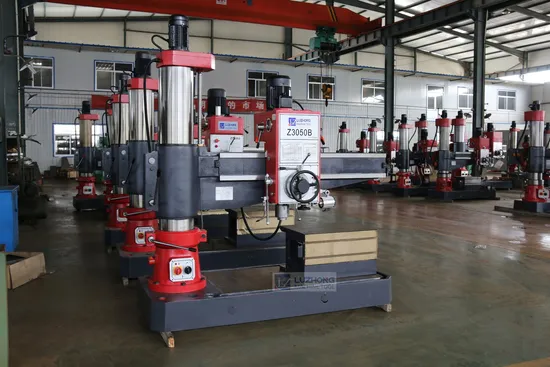

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
