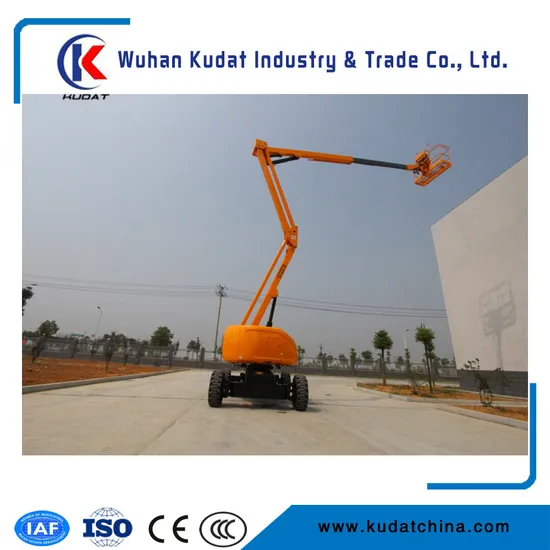

Articulated Aerial Work Platform/Boom Lift 18m Cherry Picker (GTZZ18)
| US$30,000.00-54,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GTZZ18
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Diesel 4WD
Feature
Aerial Work Platform
Certification
CE, ISO 9001
Structure
Aerial Work Platform
Working Height Maximum
19.7m
Horizontal Reach Maximum
10.8m
Wheelbase
2.6m
Ground Clearance-Center
430mm
Transport Package
Container
Specification
SGS
Trademark
KUDAT
Origin
China
HS Code
8427109000
Production Capacity
300units/Month
Product Description
GTZZ18 aerial work platformWe supply telescopic aerial work platform and articulated aerial work platform, 14m to 42m height are available.
GTZZ18 aerial work platform main spec:
Metric US
Working height maximum 20.12m 66ft
Platform height maximum 18.42m 50ft5in
Below ground reach 7.16m 23ft6in
Platform length-8ft model 0.91m 3ft
Platform width -6ft model 2.44m 96ft
Width 2.44m 8ft
Wheelbase 2.45m 8ft
Ground clearance-center 39m 1ft3.5in
Lift capacity 227kg 500lbs
Turntable Swing 360° Continuous
Travel speed -stowed 8km/h 5mph
Travel speed -raised or extended 5.6km/h 3.5mph
Turning radius - inside 3.48m 11ft5in
Turning radius -outside
Turning radius - axle extendeded outside 5.38m 17ft8in
Controls 12V DC Proportional
| MODEL GTZZ 18 | |||
| MEASUREMENTS Metric US Metric US | |||
| Working height maximum * | 19.7m | 64ft8in | |
| Platform height maximum | 18 m | 59ft | |
| Horizontal reach maximum ** | 10.8m | 35ft5in | |
| A | Platform length-8ft model | 0.76m | 2ft6in |
| B | Platform width-8ft model | 1.83m | 6ft |
| C | Height-stowed | 2.38m | 7ft10in |
| D | Length-stowed | 8.15m | 26ft9in |
| E | Width | 2.48m | 8ft2in |
| F | Wheelbase | 2.60m | 8ft6in |
| G | Ground clearance-center | 0.43m | 1ft |
| PRODUCTIVITY | |||
| ()Lift capacity (restricted) | 230kg | 507lb | |
| Platform rotation | 180° | ||
| Turntable Swing | 360°continuous 355°non-continuou | ||
| Turntable tailswing | 0 | ||
| Drive speed -stowed | 6.3km/h | ||
| Gradeability -stowed (2WD) | 30% 45% | ||
| Gradeability -stowed (4WD) | 45% | ||
| Turning radius - inside | 3 m | 9ft10in | |
| Turning radius -outside Turning radius - axle extendeded outside | 5.2m | 17ft1in | |
| Controls | 12V DC Proportional 12V DC Proportional | ||
| POWER | |||
| Power source | B3.3-C60(45kw) 400 61hp (45.5kw) | ||
| Auxiliary power unit | 12V DC 12V DC | ||
| Hydraulic tank capacity | 175L | ||
| Fuel tank capacity | 100L | ||
| WEIGHT *** | |||
| 22WD | 8202kg | 18082lbs | |
| STANDARDS COMPLIANCE EN280\JG/T5101\Q/ADZV001-2008 | |||
