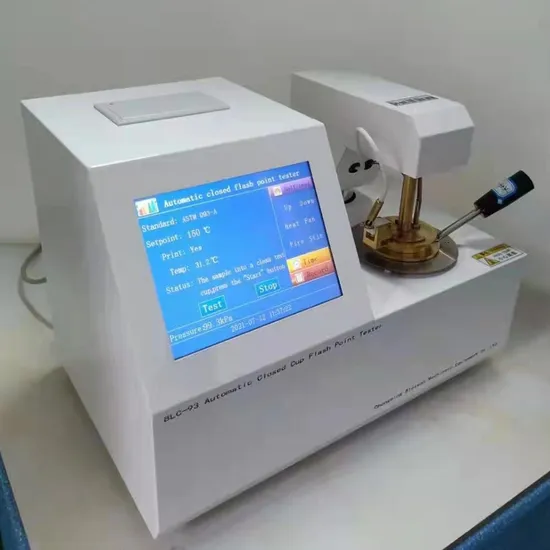

Pensky-Martens ASTM D93 Closed Cup Flash Point Tester for Diesel Fuel

Product Description

Pensky-martens ASTM D93 Closed Cup Flash Point Tester for Diesel Fuel

Application and function
The instrument meets the requirements of national standard GB261-83 and SH/T0315, ASTM D93 and international standard ISO2719-88. It is controlled by microcomputer. It is automatic electronic ignition without the need of gas source. It is reliable and easy to operate with self-test function, high measurement accuracy, good repeatability and stable performance. It is an ideal instrument for closed flash point testing in petroleum, chemical, power, environmental protection, railway and scientific research, etc.
Main Features
1.Touch type color English LCD display;
2.Adaptive PID control algorithm to automatically adjust heating curve according to standard requirements;
3.Automatic stirring, ignition, detection, alarm, cooling and printing;
4.Safe airless source platinum alloy electric wire ignition method, which is stable and reliable with high test accuracy;
5.Powerful data storage that 300 results can be stored.
Detailed Images
Main Technical Parameters

Display	Touch type color LCD display
Measurement mode	Thermocouple differential detection
Measurement range	Room temperature-350ºC
Resolution	0.1ºC
Repeatibility	National standard:Tolerance ±1ºC at flash point value<104ºC,±2ºC at flash point ≥104ºC International standard: Tolerance ±1°C at flash point ≤110ºC, ±2ºCat flash point >110ºC
Printer	High-speed thermal printer, 56 mm paper width
Temperature detection	Imported platinum resistance(Pt100Ω)
Cooling mode	Forced air cooling
Working environment	Temperature:10ºC-45ºC,Humidity: 30-80%
Power supply	AC220V±10%
Dimensions	450*280*290 mm
Weight	About 15KG

Packages& Packaging
