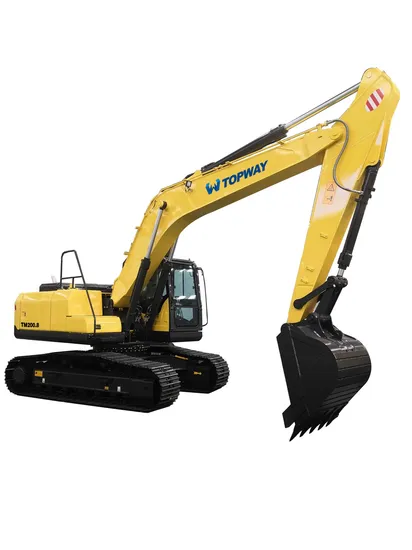

21ton 1.0cbm Hydraulic Excavator, Digger, Backhoe

Product Description

TM200.8 20Ton 1.0CBM crawl excavator, backhoe are widely used in construction project and mining side, high quality main valve, pump, swing motor and travel motor for the digger, make sure the high durability, high reliability, high efficiency, low fuel consumption and low price
Main features:
The excavator equipped with Famous engine that meets Stage III emissions, it has strong power, and the industry's same tonnage industry provides large power output and flow, on the basis of ensuring high efficiency, it also has higher reliability and durability The overall layout and the axle load distribution for this hydraulic crawler excavator are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models. The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity. The new main pump displacement is supplied to the system on demand, the standby is automatically reduced, and the work is provided on demand, reducing energy consumption and energy saving for this backhoe Breaking hammer, clamp, ripper and other attachments for this excavator to meet different working environments.
Main specifications:

MODEL	TM200.8
Operating weight (T)	21.2
Bucket capacity (m3)	0.93
Engine model	6BTAA5.9-C178
Rated power (kw/r/min)	133/2000
Volume of fuel tank (L)	420
Travel speed (km/h)	5.2/3.5
Swing speed(r/min)	11.5
Max climbing degree°	70
Bucket digging force at power max (KN) ISO	157
Average grounding pressure(KPA)	46.5
Hydraulic pump model	EDDIE FMP112APDT
Maximum flow (L/min)	215*2
Setting pressure (MPa)	37
Volume of hydraulic tank (L)	246
Overall length (mm)	9560
Overall width (mm)	2780
Overall height (to top of boom)(mm)	3040
Overall height (to top of cab)(mm)	3120
Counterweight ground clearance (mm)	1065
Min. ground clearance (mm)	466
Tail swing radius (mm)	2720
Track grounding length (mm)	3260
Track length (mm)	4060
Track gauge(mm)	2180
Track width (mm)	2780
Track shoe width (mm)	600
Turntable width (mm)	2700
Max. digging height (mm)	9275
Max. dumping height (mm)	6560
Max. digging depth (mm)	6515
Max. vertical wall digging depth (mm)	5915
Max. digging depth for 2.5m horizontal plane (mm)	6380
Max. digging reach (mm)	9865
Max. digging reach at ground level (mm)	9680
Min. swing radius (mm)	3630
Max. height at min swing radius (mm)	7670
Distance from swing center to rear (mm)	2720
Height of counterweight (mm)	2120
Grounding length (in transportation) (mm)	4850
Arm length (mm)	2900
Boom length (mm)	5700

DETAILED PHOTOS

EXCAVATOR WORKSHOP
EXCAVATOR IN 40" FR AND RORO VESSEL
Service:
We treat SERVICE as a significant segment in our value chain, from the moment you get in touch with TOPWAY, our commitment to service is a complete guarantee that we will make every effort to be there for you. That is our pledge to you. We wish to not just satisfy but surpass the expectations of our customers.
All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered. TOPWAY service will be always with you for maintain and development since your purchase. We keep in mind that never stop innovation, never stop improving, never stop adding extra value to our machines and service.
Parts Support:
Parts distribution centers of our company. At all levels provide you with original parts. we maintain an extensive spare parts inventory for all our equipment. This forms a one-stop-centre to serve our customers promptly and efficiently.
