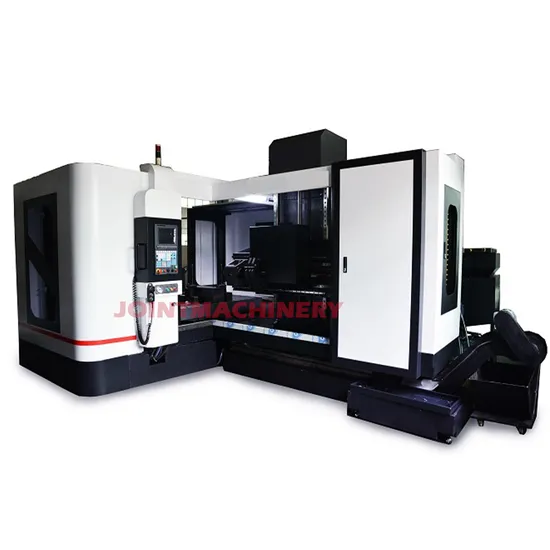

CNC Drilling Equipment for Metal Horizontal CNC Deep Hole Drilling Machine

Product Description

Drilling stands as the cornerstone of machining operations, a process whose versatility extends across an expansive range of application fields. Traditional drilling equipment like bench drills, milling machines, and radial drills have historically shackled operators to repetitive tasks, limiting efficiency and quality. Safety concerns, processing constraints, and labor-intensive operations have plagued manufacturers and operators alike. However, the dawn of the CNC era heralds a transformative shift. The introduction of CNC deep drilling technology liberates workers, overcomes the hurdles of deep hole processing, and elevates the quality of operations to the level once assumed exclusive to standard drilling machines. This technology revolutionizes processes such as drilling, enlarging, expanding, and delivers automatic chip removal, CNC positioning, and autonomous processing capabilities, thereby redefining productivity and precision in machining.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

The precision-engineered CNC deep hole drilling machine from Shenzhen Joint Machinery Co., Ltd. is adeptly designed to cater to a wide array of workpieces, ensuring impeccable deep hole processing across industries:
√ Die & Mould Industry: Expertly crafted for water transport holes, center holes, hot runners, guide roller holes, and more.
√ Automotive Industry: Precision deep hole processing for cylinder heads, crankshafts, hydraulic tubing, plunger bushings, among other critical components.
√ Oil Pump & Lubrication Nipple Industry: Seamless deep hole processing for oil-injection gas, nozzle valves, plunger bushings, and various other spare parts.
√ Textile Machinery Industry: Specialized mesopore processing for diverse spindle types, enhancing textile machinery efficiency.
√ Medical Equipment Industry: Advanced axial processing capabilities for materials like titanium alloy and stainless steel, tailored to medical equipment demands.
√ Mining & Oil Machinery: Superior deep hole processing on piston rods and cylinder walls, optimizing performance in mining and oil operations.
√ Electrical Power and Steam Turbine Industry: Flawless deep hole processing of rotors, central spindles, valve spindles, unit outer cylinders, and condenser tube plates, ensuring exceptional reliability and efficiency.
CNC Drilling Equipment for Metal Horizontal CNC Deep Hole Drilling Machine

Model	Unit	DH-2216
Inner diameter of drilling	mm	2.5-35
Max depth of drilling	mm	1600
Table size	mm	2200*1350
X axis travel	mm	2000
Y axis travel	mm	1300
Z axis travel	mm	1600
Cutting feeding	mm/min	1-300
Max rotary speed of spindle	rpm	7000
Spindle motor	kw	11/15
Three axis motor	kw	4.4/4.4/2.3
Pressure of oil pump	kg/cm	0-150
Capacity of cutting tank	L	800
Max load weight of table	kg	16000
Weight	kg	16000
Dimension	mm	6000*5200*3000

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of excellence in the manufacturing and export of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, grinding machines, and more. Our unwavering dedication to quality and service has positioned us as a trusted partner to a global clientele. By integrating cutting-edge core technologies from Taiwan and Germany, we ensure our machines deliver unmatched precision, stability, and reliability, meeting the most complex machining demands. Our products, celebrated for their performance, are sought after across Asia, Europe, South America, North America, and beyond. We cherish long-term partnerships with customers worldwide, consistently driving business value and innovation together.
