Slant Bed CNC Lathe with High Finesse (BL-S36/36T)

Product Description

Slant Bed CNC Lathe with High Precious (BL-S36/36T)

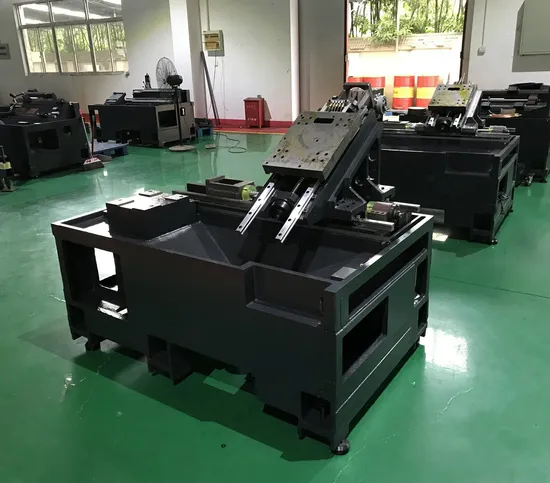

-S36 mount gang tool device, S36T mount 8 station HYDRAULIC-SERVO tool turret. -Super compact structure, big inside space, modern appearance -Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand. -Bed adopt flat bed, slide board adopt 30°slant design(structure similar as JAPAN TSUGAMI M06/08), high rigidity, good machining flexibility, easy for chip conveying -Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, robot etc. -Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability. -Frame adopt oil-coolant separation design, adopt independent coolant tank -Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range -Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity, can realize μ class precise turning. -Adopt high precision wide linear guideway, high rigidity and long using lifespan, fast moving speed, good accuracy holding, suitable for precise machining -For S36T, mount energy-storage tank,reduce pressure fluctuation during tool change -Can mount right-setting or back-setting chip conveyor
Details:

Item	Brand
CNC controller	GERMANY-SIEMENS
X,Z axes driver&motor	GERMANY-SIEMENS
Spindle driver&motor	CHINA top-CTB
Spindle unit	TAIWAN-VOLIS/KENTURN
Ball screw	TAIWAN-PMI/HIWIN C3 class
Ball screw bearing	JAPAN-NSK/NTN
Linear guideway	TAIWAN PMI/HIWIN
Tool turret	GERMANY-SAUTER/INDIA PRAGATI
Lubrication system	TAIWAN-ISHAN
Rotary oil cylinder&chuck	TAIWAN-AUTOGRIP
Hydraulic parts	TAIWAN/JAPAN
Coolant pump	Joint-venture
MPG	USA-HEDSS
Tri-color indication lamp	KOREA-QLIGHT
Breaker	FRANCE-SCHNEIDER
AC contactor	FRANCE-SCHNEIDER
Relay	JAPAN-OMRON
DC switch power supply	TAIWAN-MEANWELL
Terminal block	GERMANY-WEIDMULLER
Synchronous belt	USA-GATES
Synchronous belt wheel	TAIWAN-PTP
Nuts	TAIWAN-YINSH
Shaft coulping	GERMANY-KTR/R+W
Scrapping plate Extensible cover	TAIWAN-WANHE
Chip conveyor&chip bucket	TAIWAN-WANHE
Coolant pipe	TAIWAN-WEIDING

Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
Optional configuration:
-SIEMENS 828D/FANUC 0i TF CNC controller
-Chip conveyor
