50X~500X Magnification Infinity Optical Lab Instrument Mit300 LED Reflecting Metallurgical Microscope

Product Description

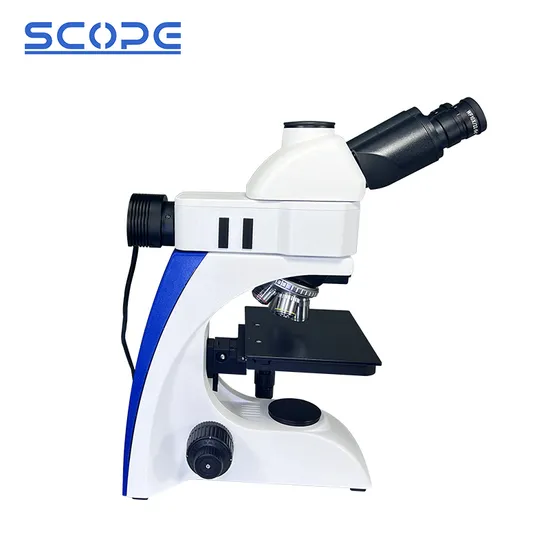

Product Description MIT300 Metallurgical Microscope
MIT300 metallurgical microscope is double head design, head can rotate 360 degrees, equipped with reflection illumination for polarizing.Also it can be customized digital head(trinocular head). It mainly analyzes the relationship between the microstructure of steel and its chemical composition by examining the microstructure.
Widely used in medical and health institutions, laboratories, research institutes, colleges and universities to do biological, pathological, bacteriological observation, teaching and research, clinical experiments and routine medical inspection; factory, laboratory analysis and identification of materials.
1. Stage with fast lowering unit can increase 50mm for working distance, more convenient for observing big size sample. 2. Oversized three-layer mechanical stage provides more choice for samples.
1. Analyzer 2. Polarizer 3. Filter switch handle 4. Ground glass slider 5. Aperture diaphragm

MIT300 Equipment Outfits
Item	Specification
Eyepiece	WF10X/22mm(adjustable)
	WF10X/22mm(adjustable, reticule 0.1mm)
Metallurgical LWD Infinity Plan Objective	LMPLAN FL 5X/10X/20X/50X
Seisentopf Trinocular Head	Inclined 30°, rotated 360° Interpupilary distance: 48-76mm
	Light distribution(Both): 100:0(100% for eyepiece) 80:20(80% for trinocular head, 20% for eyepiece)
Nosepiece	Quintuple
Mechanical Stage	Stage size: 200*150mm, travel range: 77*52mm Stage fast lowering unit: up-down moving range can be increased 50mm
Polarizing Unit	Analyzer/ Polarizer
Coaxial Coarse and Fine Focusing Unit	Coarse Stroke: 25mm Fine stroke per rotation: 0.2mm, fine diversion 2µm Tightness adjustment, upper distance limiter
Reflection Illumination	5W LED lamp DC input (input voltage 110V~240V)
Packing Size	520mm×470mm×430mm
Weight	16kg (gross), 12kg (net)
Options
Metallurgical LWD Infinity Plan Objective	LPL80X LMPLAN FL100X(dry)
Reflection Illumination	12V/50W Halogen lamp (input voltage 110V~240V)
Filter	Blue Green/Amber/Grey
C-mount	1X/0.75X/0.5X(focus adjustable)

Packaging & Shipping Our microscopes are packed in foam and cartons. After the product is packaged, it can be shipped according to the transportation method communicated in advance. Our transportation methods are diverse, supporting sea transportation, air transportation, express delivery, etc.
