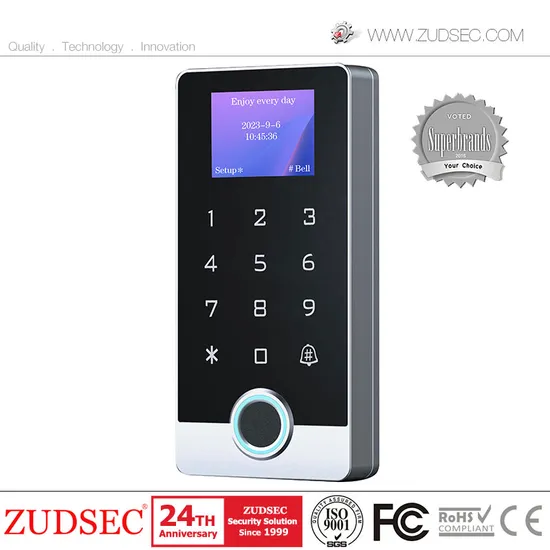

LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
| US$24.90-28.90 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
ZDAC-T4FWL-WiFi
Color
Silver
Screen
Color Screen
Communication Interface
Wiegand 26 & WiFi
Fingerprint Capacity
10000
Item
WiFi Fingerprint Access Control
Memory Capacity
10000
Fingerprint
300
Card Capacity
10000
Card Type
125kHz Em ID Card
Waterproof
IP68
Working Way
off-Line/on-Line
Voltage
DC12V
Material
Metal Case, Anti-Vandal
Transport Package
Color Box
Specification
CE, RoHS
Trademark
ZUDSEC
Origin
Shenzhen, China
HS Code
853100
Production Capacity
100000PCS/Year
Product Description
Product DescriptionLCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD screen & Voice fucntion, Touch Keypad, Metal case, App Control(Optional) Anti-vandal,Multi-function standalone access controller and reader, ZudSec LCD Series is a new generation on multifunctional standalone access control.It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable . It contains reader mode and standalone access control mode etc. It's widely applied to different occasions, such as office, residential communities, villa, bank and prison etc..
-Optional model:
* ZDAC-T4FWL (Metal shell with IP68 Waterproof)
* ZDAC-T4FWL-WiFi (Metal shell with WiFi + IP68 Waterproof)
Features - Full message LCD menu configuration & voice function for easy setting
- Touch Keypad, Supporting fingerprint, ID card and password- 300 Fingerprint users, 10000 RFID users & PIN- Wiegand output, wiegand input- Besides standalone, it can connect to other controller as the salve reader- Wiegand interface: wiegand 26- Remote control / Master card for programming- Metal shell, anti-vandal design.- Anti-magnetic & lock output current short protect;- Support connecting any card readers with wiegand interface, such as HID, 13.56MHz Mifare Card, or 125KHz EM card.- Full of 2160 users, searching speed <0.1 S.- DC input: 12DC,100mA
Product Parameters Access ways:Fingerprint, card, code, multiple combinationmethods, mobile phone App (Optional)
Card Type: 125KHz Card /13.56MHz Mifare card
Keypad Characteristic: Capacitive touch keypad
Output Way: Contain reader mode, the transmission format could be adjusted by user
Access Way: Fingerprint , card,code or multiple combination methods,mobile phone App (Optional)
Admin Card: Support admin add card and admin delete card
Card Capacity: 10000
Unlock Signal: NO, NC, COM output using relay
Alarm Output: Use MOS tube output to directly drive the alarm (optional)
Operating Voltage: DC12-24V
Operating Current:≤100mA; Standby Current: ≤60mA
Operating Humidity: 0%-95%, Operating Temperature:-40ºC-60ºC
