Full Servo Thermoforming Machine for Plastic Cup Container Box Forming

Product Description

I. Feature & parameter
- The machine adopts hydraulic pressure system to produce products, stable running, small noise, good mold locking ability.
- Electromechanical, gas, hydraulic pressure integration, PLC control, high precision frequency conversion.
- Completely automatic and fast production speed. Different products are available by changing different moulds.
- Adopt imported famous brands of electric and pneumatic fittings, stable running, relia
ble quality and long life.
- The whole machine is compact, one mould has all functions, such as pressure giving, forming, cutting, cooling and finished product blowing.

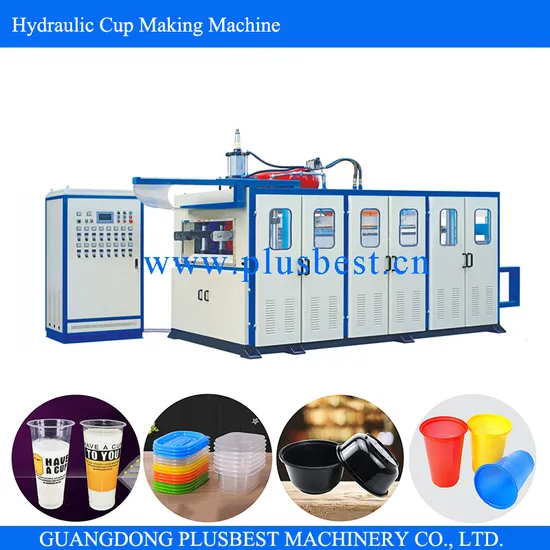

II. Machine photo
III. Technical Data

Mode No.	PBS-720	PBS-750	PBS-850
Material	PET-PP-PS-PE-PVC-PLA	PET-PP-PS-PE-PVC-PLA	PET-PP-PS-PE-PVC-PLA
Speed(cycles/min)	20-35	20-35	20-35
Sheet Thickness(mm)	0.3-2.0	0.3-2.0	0.3-2.0
Forming Height(mm)	160	180	180
Forming Size(mm)	720×450	750*500	850×560
Sheet Width(mm)	≤720	≤750	≤850
Total Power(kw)	≤55	≤65	≤85
Air Wastage(Mpa)	0.6-0.8	0.6-0.8	0.6-0.8
Water Wastage(m³/h)	≤0.5	≤0.6	≤0.6
Dimension(m)	6.2*2.6*2.6	7.5*2.8*2.6	7.5*3*2.8
Weight(T)	7	8	9
