Automatic Woodworking Machinery Wood Panel Edge Banding Machine Sealing Edge Machinery

Product Description

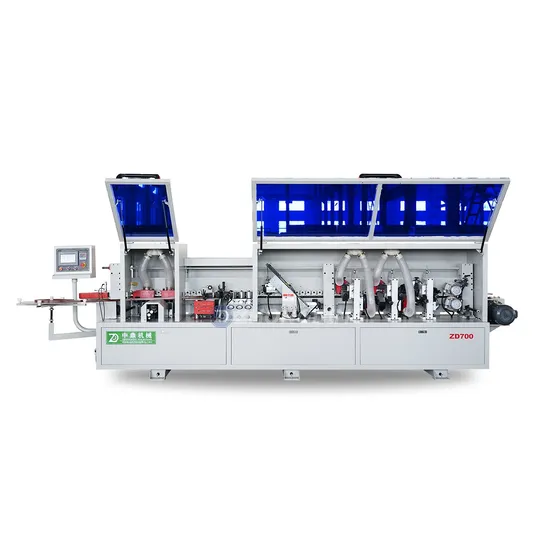

Automatic Woodworking Machinery Wood Panel Edge Banding Machine Sealing Edge Machinery
Product Description

Technical Specification:
Functions: pre-milling, gluing, end trimming, rough trimming, fine trimming, scraping, buffing.

Model	ZD700
Banding tape thickness	0.4-3mm
Banding tape width	10-60mm
Workpiece thickness	10-60mm
Workpiece length	>=100mm
Workpiece width	>=50mm
Heating power	1.5kw
Feeding motor power	2.2kw
Pre-milling motor power	1.5kw*2
Glue spreading motor power	0.37kw
End trimming motor power	0.55kw*2
Rough trimming motor power	0.75kw*2
Fine trimming motor power	0.75kw*2
Polishing motor power	0.18kw*2
Feeding speed	13m/min
Air pressure	0.7Mpa
Total power	10.63kw
Overall dimension	4940*800*1500mm
Packing size	5000*850*1580mm
N.W.	1600kgs
G.W.	1870kgs

Packaging & Shipping

Company Profile

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice. Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia. We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
FAQ

Q1: Are you a manufacturer? A1:yes. We have 20 years manufacturer and export exprience. Q2.About the MOQ A2.1 set, and we are OEM,I will give you the competitive price better than market. Q3.May I buy a sample? A3. Of course ,sample order is welcome. Q4.How can I place a order? A4.Just give me your nice inquiry,I will do my best to assist you. Q5. If I want cheaper quality, can you produce? A5.Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price. Q6. If I order big quantity, what's the good price? A6.Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
