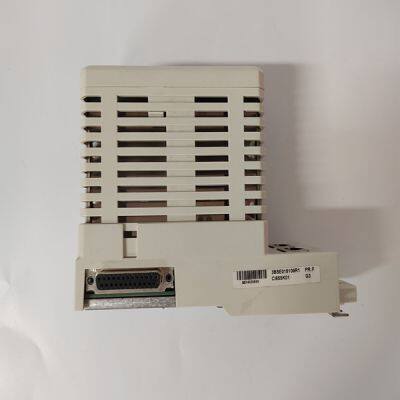

CI855K01 3BSE018106R1

Product Details

Product Description

Product Description
Brand:ABB
Type:CI855K01 3BSE018106R1
Origin:the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
OUTPUTS/INPUTS • 2 analog inputs, each configurable in the MACS development environment as ±10 V, ±10 mA or 4-20 mA. The inputs are converted in multiplex operation • 1 reference voltage output: The reference voltage source provides a short circuit protected voltage of +10 V • 2 analog outputs, each ±10 V, additionally individually configurable in the MACS software as ±10 mA, ±50 mA or 4–20 mA with wire fault monitoring • 1 pulse input 24 V useable as counter input or frequency measurement input MODULE STATUS LEDS On the front, 4 LEDs provide information about the status of important module functions. analog input (current/voltage) analog output (current/voltage) PUlSe input positive switching PUlSe input ground switching CONFIGURATION The configuration of the analog I/O is carried out per software via the central control configuration in the Moog Axis Control Software (MACS) development environment. Either the two analog inputs or the pulse input can be used. ACTUATION The I/O of the analog extension module is actuated directly from an MSC or MSC II (not D136X001-001 and D136E001-001) via the extension bus (E-bus). All input- and output-data are transferred within one cycle of the E-bus. E-BUS One MSC or MSC II can be extended with a maximum of 7 QAIO 2/2-AV modules. It is not possible to combine it with QAIO 16/4 on one E-bus segment.
Module Data QAIO 2/2-AV I/O extension module Order number D137-001-011 Connection to M3000 modules Via E-Bus (10 MHz); please note: - It is not possible to connect the module to an MSC D136X001-001 or D136E001-001 - Combination with QAIO 16/4 A on one E-bus segment is not possible Connection technique Plug-in terminal strips for screwing or clamping Mounting Mounting rail NS 35/7.5 pursuant to EN 50022 (DIN top-hat rail) 4 module status LEDs Module functions and diagnosis Dimensions, W x H x D 124 x 170 x 85.5 (attachment dimension: W = 113/118.5) mm 4.88 x 6.69 x 3.37 (attachment dimension: W = 4.45/4.67) inch Temperature range +5 °C (+41 °F) to +55 °C (+131 °F) (operation) and -25 °C (-13 °F) to +70 °C (+158 °F) (storage) Mean temperature in operation for 24 hrs.: max. +50 °C (+122 °F) Relative air humidity 10 % to 95 % (non-condensing) Operation height Max. 2000 m (6500 ft); storage/transport max. 3000 m (9800 ft)
