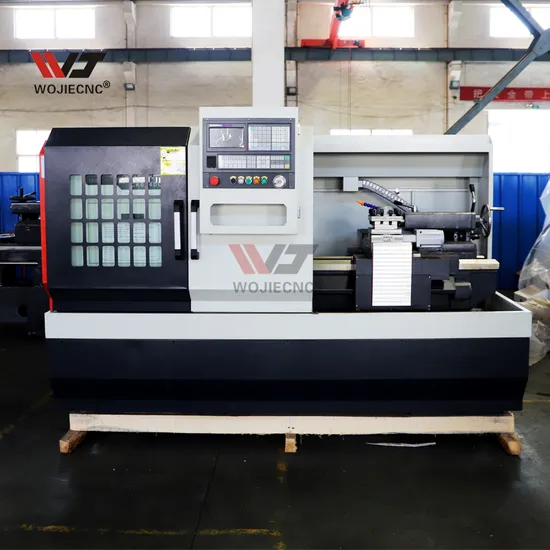

Cheap Price Lathe Machine Ck6140 CNC Lathe for Processing
Basic Info.
Model NO.
CK6140
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Joint Drive
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Maximum Swing Diameter Over Bed
400mm
Maximum Machining Length
1000/1500/2000
CNC System
GSK Siemens Fanuc Syntec
Turret
4 Station Turret
X Travel
230
Z Travel
1000/1500/2000
Spindle Taper
Mt6
Main Motor
4kw
Spindle Nose
C6
Spindle Speed
100-1600rpm
Spindle Bore
52
Positioning Accuracy
0.015
Repeat Positioning Accuracy
0.006
Spindle Motor
7.5kw
Tailstock Quil Taper
Mt5
Transport Package
Plywood Package
Specification
2500*1650*1700mm
Trademark
WOJIE
Origin
Shandong
HS Code
8458110090
Production Capacity
500/Year
Packaging & Delivery
Package Size
250.00cm * 170.00cm * 170.00cm
Package Gross Weight
2500.000kg
Product Description
Product DescriptionProduct Parameters
| SPECIFICATIONS | Units | CK6140 | CK6150 | CK6160 |
| Swing over bed | mm | 400 | 500 | 600 |
| Maximum swing over cross slide | mm | 210 | 260 | 300 |
| Distance between centers | mm | 1000/1500/2000 | ||
| Spindle bore | mm | 52mm(opt 8) | 52mm(opt 8) | 52mm(opt 8) |
| Spindle speed range | rpm | L:100-500H:500-1800 | ||
| Tailstock travel | mm | 130 | 130 | 130 |
| Tailstock quill taper | - | MT4 | MT5 | MT5 |
| Tailstock quill diameter | mm | 65 | 65 | 65 |
| X travel | mm | 230 | 280 | 320 |
| Z travel | mm | 1000/1500/2000 | ||
| X/Z rapid feed speed | m/min | 6/8 | 6/8 | 6/8 |
| Main spindle motor | kw | 4 | 5.5 | 0.125 |
| Weight for 1000 | kg | 1800 | 1900 | 2000 |
| Weight for 1500 | kg | 1900 | 2000 | 2100 |
| Weight for 2000 | kg | 2000 | 2100 | 2200 |
| Dimension for 1000 | mm | 2500*1650*1700 | 2500*1700*1750 | 2500*1750*1800 |
| Dimension for 1500 | mm | 3000*1650*1700 | 3000*1700*1750 | 3000*1750*1800 |
| Dimension for 2000 | mm | 3500*1650*1700 | 3500*1700*1750 | 3500*1750*1800 |
Detailed Photos
| 3-jaw Chuck | 4-station tool post |
| Control system Standard configuration: GSK Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin | Manual tailstock |
| 2-axis Box way | Lubrication system The centralized lubrication system can be used in a timely,quantitative,convenient is conductive to increasing the service life of the machine tool. |
Optional accessory
| Auto chip conveyor and chip bucket | 8-station turret | Oil Mist Collection |
| Automatic feeder | Hydraulic tailstock | Oil-water separation (Oil skimmer) |
Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
