Pigments and Dyes Industrial Cone Screw Dry Powder Mixer Blender Machine

Product Description

Product Description Product Description
The conical screw (Nauta) mixer is a convective mixer with high mixing efficiency. It is gentle and guarantees the highest level
of mixing accuracy without product distortion. It is a highly efficient vertical powder mixer with low energy consumption for batch
mixing of powder and granules of various particle sizes.
Typical Application
mixing and homogenizing of granular, dust, and paste-like materials.
cooling and heating powders
coating powders and granulating by applying liquids
Applicable Materials
Salts, Lactose, Bran, Gelatin, Barley, Starch, Dried Fruits, Fiber, Soy Protein, Spices, Sugar substitutes, Cellulose, Wheat,
Food Seasonings, Seaweed, Nutraceutical, Proteins, Vitamins, Aluminum silicate, Catalysts, Kaolin, Metallic Compounds, Silica,
Calcium Carbonate, Pigments, Zinc Oxide, Detergents, Dyestuff, PE, PP, PVC, Silicone, Synthetic Resin, Synthetic Rubber, etc.
Working Principle

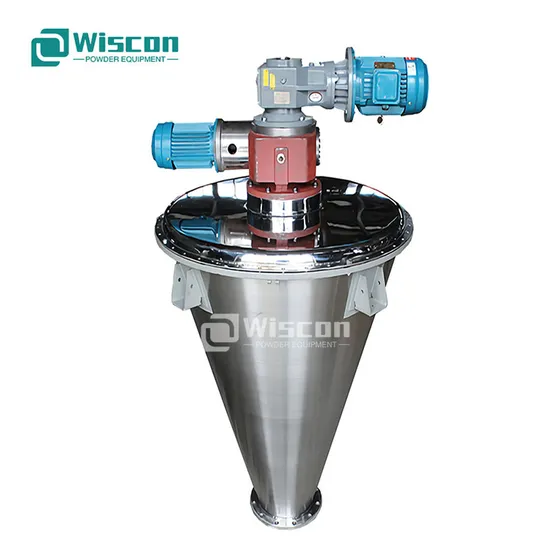

Conical Screw Mixer consists of the drive unit, conical vessel, transmission assembly, double screws, and discharge valve.
The screws and screw arms are driven by the motor and reducer; both separately move at different speeds. The spiral moved
the materials upward along the central shaft, where the materials drop by its gravity in the center. At the same time, the screw
arm revolves around the central shaft to keep the materials rotating and dispersing in the mixer. The whole mixing forms a
three-dimensional action; where raw materials are sheared and diffused repeatedly in the vessel. Thus, the mixture achieves
optimum homogeneity.
Product Parameters

Model	Total Volume(L)	Max Loading (kg)	Power (kw)	Speed (r/min)	Overall Size (mm)
SZH-0.15	150	90	1.5	143/2	Φ750×1420
DSH-0.3	300	180	3	143/2	Φ990×1850
DSH-0.5	500	300	3	143/2	Φ1130×2085
DSH-1	1000	600	4	57/2	Φ1490×2590
DSH-1.5	1500	900	4	57/2	Φ1660×2875
DSH-2	2000	1200	5.5	57/2	Φ1815×3070
DSH-2.5	2500	1500	7.5	57/2	Φ1920×3170
DSH-3	3000	1800	7.5	57/2	Φ2055×3280
DSH-4	4000	2400	11	57/2	Φ2300×3830

Product Details
Why us Wuxi Wiscon mechanical and Electrical Equipment Co., Ltd. is an integrated company specializing in powder production for the food,
pharmaceutical, chemical, and biological industries since 2016.
Main products categories cover the following equipment:
a. Drying Equipment: rotary atomizer spray dryer, pressure nozzle spray dryer, tray drying oven.
b. Powder Mixer: Conical Screw mixer, Ribbon mixer, Ploughshare Mixer, V-shaped mixer, and Double cone mixer for bulk materials.
c. Vibration Screener: Rotary vibratory Screener, Tumbler Screening Machine, and Centrifugal shifter for fine powder separation.
d. Grinding Machine: Universal Mill, Air Classified Mill for food and Pharmaceutical.
e. Granulating Equipment: High Shear Mixer Granulator and Fluid Bed Granulator
f. Vacuum conveyor: Pneumatic vacuum Feeder for BIC, Bagging machine, powder mixer, sieve, etc.
FAQ Questionnaire for conical screw mixer
In order to quote you the right conical screw mixer price, Please specify as much information as possible
- What are the materials to be handled?
- What's the mixing capacity per batch?
- What is the particle size of the raw materials?
- What is the bulk density of raw materials?
- Does the product need to be heated or cooled while mixing?
- Does the mixer need to have a vacuum applied when the product is mixing?
