Factory Direct Supply Universal Tensile Test Machine for Metal Material
| US$1,100.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HDW
Max Diameter of Workpiece
30mm
Mass Scope of Workpiece
<1kg
Type
Strength Testing Machine
Maxcapacity
<1000KN
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Static Load
Display
Export Standard Wooden Crates
Control
Computer Control
Weight
100-500Kg
Power Source
AC220V
Oil Cylinder Position
No
Max. Load
5kN
Load Range
2%~100% Full Scale
Load Accuracy
±1%
Resolution of Load
1/300000 of Full Scale
Measuring Range of Deformation
2%~100%
Resolution of Displacement
0.001mm
Accuracy Measure of Deformation
±1%
Control Speed
0.1-500(mm/Min)
Relative Error of Speed
≤±1%
Tensile Test Space
600mm
Compression Test Space
600mm
Load Cell Configuration
One(Max Load), More Load Cells Can Be Added Accord
Extend Configuration
Large Deformation Extensometer, High or Low Temper
Protection Function
The Test Machine Has The Function of Overload and
Size
730*360*1750 mm
Transport Package
Export Standard Wooden Crates
Specification
730*360*1750mm
Trademark
HENGXU
Origin
China
Production Capacity
1000
Packaging & Delivery
Package Size
730.00cm * 360.00cm * 1750.00cm
Package Gross Weight
500.000kg
Product Description

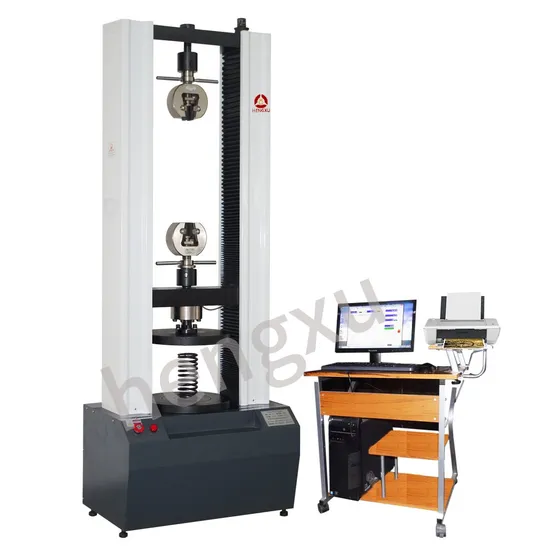

Product DescriptionHDW Series Microcomputer Control Universal Testing MachineMain Application
This series of tensile testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards.and suitable for testing the mechanical properties of various metals, non-metals and composite materials such as rubber, plastics, textiles, waterproof materials, wires and cables, net ropes, metal wires, etc. For example, various tensile tests can be easily completed by changing the accessories to complete compression, bending, shearing, tearing, peeling, puncture and other tests. Achieving precision in material testing is important to ensure quality and performance, and the microcomputer-controlled universal testing machine offers exactly that. Equipped with an AC stepper motor and a digital servo speed control system, these electronic universal testing machines provides reliable force application during mechanical tests. Its arc synchronous belt and precision ball screw assembly ensure smooth operation. While primarily used for tensile testing, this testing system easily adapts to other tests, including compression, bending, shearing, tearing, peeling, and puncture, by changing fixtures.
Product Parameters
| Name | Computer control universal Testing machine specification | ||||||
| Model | HDW-5 | HDW-10 | HDW-20 | HDW-50 | HDW-100 | HDW-300 | |
| Structure | 2 columns | ||||||
| Max. Load(KN) | 5 | 10 | 20 | 50 | 100 | 300 | |
| Load Range | 2%~100% full Scale or 0.4%-100% Full Scale | ||||||
| Load Accuracy | ±1% or ±0.5% | ||||||
| Resolution of load | 1/300000 of full scale | ||||||
| Measuring Range Of Deformation | 2%~100% | ||||||
| Resolution of Displacement | 0.001mm | ||||||
| Accuracy measure Of Deformation | ±1% o r±0.5% | ||||||
| Control Speed | 0.1-500(mm/min) | 0.1-200(mm/min) | |||||
| Relative Error of Speed: | ≤±1% | ||||||
| Tensile Test Space | 650mm | ||||||
| Compression Test Space | 650mm | ||||||
| Load Cell Configuration | One(Max Load), more load cells can be added according to customer requirement. | ||||||
| Extend Configuration | Large deformation extensometer, high or low temperature test chamber, high temperature oven. | ||||||
| Protection function | The test machine has the function of overload and limit protection | ||||||
| Test machine size(mm) | 730*360*1750 | 740*500*1820 | 800*480*1870 | 1130×650×2650 | |||
| Power Supply | AC110V / 220V / 380V±10%, 50Hz-60Hz | ||||||
| Weight(KG) | 300 | 350 | 400 | 1500 | |||
Our Advantages
Company Profile Jinan HengXu Testing Machine Technology Co., Ltd., established in 2007, is a prominent hightech enterprise specializing in the research, development, and production of testing machines. With a focus on friction wear testing and mechanical testing for advanced materials, the company has become a leading player in China's testing industry. HengXu stands out due to its advanced testing technologies and strong customer trust, achieving over 100 million RMB in sales in 2023.
