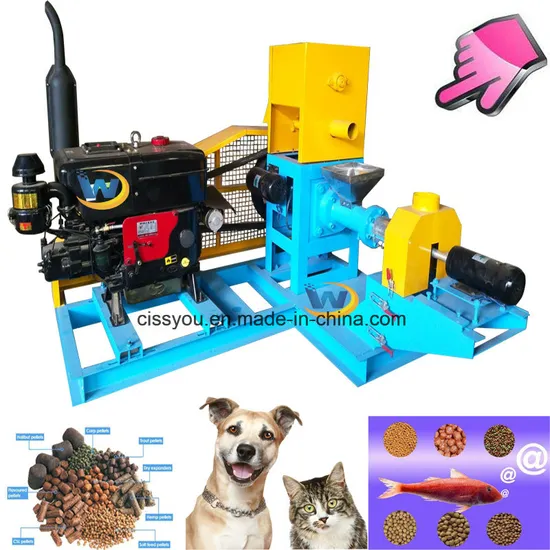

Wet Type Floating Fish Feed Pellet Maker Extruder Machine

Product Description

1. Material requirements of floating fish feed pellet making machine
Material: corn, maize, wheat bran, bone powder, fish powder, with nutrition material, and vitamin, etc.
Moisture of raw material:20%-25%
Raw material type:Powder
Fineness of material:60-80 mesh
2. Working principle of floating fish feed pellet making machine
---It's significantly different between pet food and traditional feeding method.
---The material can be expanded to pellet feed which is different shaped, unique taste and rich nutrition, suitable for dog,
cat,fish, bird, rabbit fox etc.
---The material will be pressed into ring die through two rotating press rollers.
---The resulting pressure compresses the material and extrudes it through the holes in the die.
---The pellet will be out directly.

3. Flow chart of floating fish feed pellet making machine
1. Start the machine → 2. Add a little water and start the cutter → 3. Add wet material;
start the feeder When the puffed Position in front becomes heat →4. Adjust the cutter speed
4. Technical Parameter of floating fish feed pellet making machine -Wet type:

Model	Capacity(kg/h)	Motor power(kw)	Feed power(kw)	Screw Dia(mm)	Cutting power(kw)
WSJY-60	120-150	15	0.4	60	0.4
WSJY-70	180-250	18.5	0.4	70	0.4
WSJY-80	300-350	22	0.4	80	0.6
WSJY-90	400-450	30	1.1	90	0.6
WSJY-120	500-700	55	1.1	120	1.5
WSJY-135	800-1000	75	1.1	133	2.2
WSJY-160	1200-1500	90	1.5	155	2.2
WSJY-200	1800-2000	132	1.5	195	3.0

5. Characters of floating fish feed pellet making machine
1. Low power consumption, high capacity and Long service life.
2. The cutting structure is very advanced. It has such outstanding features as novel design, unique, simple structure,
easy to installation and unloading, easy operation, etc .
3. There is a special pressure increased device to ensure the quality and the capacity.Besides,the Electric heating device
improve the feed expansion rate
4. Starch gelatinization can reach 90% to furtherly increase the feed capacity.
5. Fish pellet can keep floating on water for at least 12 hour.So it will not pollute the water and at the same saves the pellet
The cooked final products is easy for animal to absorb .
6. The raw material is experienced by the high temperature and high pressure, so it can kill the salmonellosis and bacterial
infections to ensure the pellet clean and healthy.
7. In the same case of the feed formula, the cost of using our extruder machine can be 60-80% less than the market cost.
Notes:
1) Different feed pellet size could be come ture by changing the different size of the molds;
2) We could supply 3 sets molds and 1 one wear parts (1 screw, 2 sleeve, 1 cutter, 1 heating plate ) for you freely.

The feed production line is goes as follows:
Material crushing----mixing----pellets extruding---pellet drying---pellet cooling---pellet packing.

1) Crusher----To crush the raw material into powder. The powder fineness kept in 60-80 mesh.
2) Mixer -------To make all kinds of powder mixed evenly. The moisture content of the powder is 20%-25%.
3) Extruder----To make many kinds of feed pellet. Such as fish feed (floating tpye and sinking type), pet feed.
4) Dryer--------To remove the extra moisture of the pellet.
5) Cooler------ To reduce the temperature of the pellet after dring.
6) Packaging-- After cooling the feed pellet, we could package it.

*** Except all above machines, this line will need other equipment, such as storage bin, conveyor, Pneumatic conveying systems, unloader, fans, hanging feeder and so on.
*** We could help the customers to design the whole fish feed production line for floating fish feed production, and make sure the automatic operation with electric control, meet the demand of commercial production.

1. The floating time can reach 24 Hours, which can be seen clearly by you and it won't waste feed.
2. It's easy to be digested for animals, especially fish.
3. The sterilization effect of fish feed extruder is better to avoid gastrointestinal disease.
4. Aquaculture feed are generally required to put in water, and aquatic animal feeding time is longer, in order to reduce the feed loss in the water and water pollution, the feed is maximized the stability of the feed in the water.
