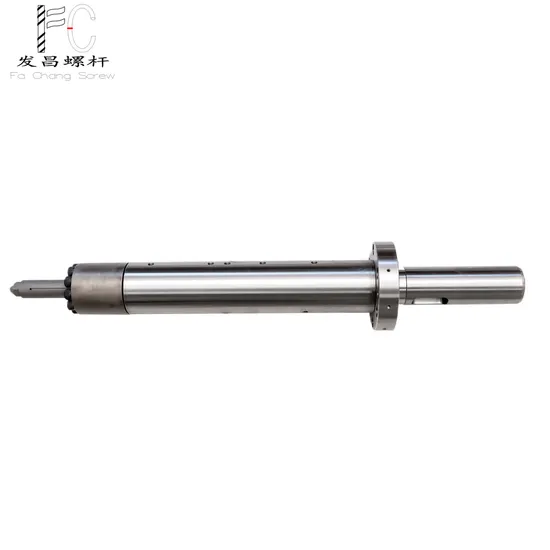

Robust Cast Iron Barrel for Injection Molding Machine Screws: Offering Exceptional Strength and Stability for ABC PP PE TPU Tpz PE PS PPS POM PBT PA66

Robust Cast Iron Barrel for Injection Molding Machine Screws: Offering Exceptional Strength and Stability for ABC PP PE TPU Tpz PE PS PPS POM PBT PA66

US$500.00-1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FC-T100/FC-T200/FC-T300/FC-T700/FC-T800
Standard
ISO9001:2006
Technics
Casting
Feature
Recycle
Material
Steel
Hardness for Bimetallic
HRC50~70 Depending on Different Alloys
Thickness of Bimetallic
1.5~3.0mm Depending on Different Alloy Coating
Surface Roughness
Ra 0.4 Um
Chromium Plating Thickness
0.05 M
Transport Package
Wooden Box
Specification
1200MM*120MM*120MM
Trademark
FACHANG
Origin
China
HS Code
8477900000
Production Capacity
10000 Pieces/Year

Packaging & Delivery

Package Size
180.00cm * 30.00cm * 40.00cm
Package Gross Weight
100.000kg

Product Description


Our different kinds of Screw Barrel sets suit for Brands of:
ENGEL,Krauss Maffei, ARBURG, Sumitomo DEMAG, JSW, HUSKY,NISSEI,HAITIAN, FANUC, YIZUMI,WELLTEC,TOYO, etc.
Cutomzied Screws and Barrels are available.
One Screw Barrel set including:
Srew, Barrel, Screw tip, Sleeve, Ring, Srcrew nozzle, Flange.
Barrel Selection Guide
Model Product Name Technology Hardness Plastic Range Scope of application Wear-Resistant Corrossion-Resistant
FC-T100 Nitriding Steel Nitridation HV960 degree above Common materials No fiber added Suitable for injection molding of common raw materials without GF and flame retardant wehn the material termpreture is lower than 280 ★★ ★★
FC-T200 Iron-based alloy Centrifugal Casting 58-62 GF 30% or less High Wear resistance, moderate corrosion resistance, High temperature resistance (lower than 420 C) ★★★ ★★
FC-T300 Nickel Base Centrifugal Casting 61-62 GF50% or less Suitable for halogen-free plastic 50% GF, Carbon Fiber, mineral fiber,metal powder injection, ceramic injection and other high wear and corrosion working conditions. ★★★★ ★★★★★
FC-T700 Cobalt-based alloy HIP 63-65 GF 60% or less Suitable for high temperature, high pressure and high speed forming conditions such as high tempreture transparent PC, optial products, narrow fame, PEEK, PEI, etc. ★★★★★ ★★★★★
FC-T800 Halogen Free Ceramics HIP 65-67 GF 65% or less Corrosion resistant 65% GF, VO+halogen-free flame retardant ★★★★★★ ★★★★★★

Screw Selection Guide
Model Product Name Technology Hardness Plastic Range Scope of application Wear-Resistant Corrossion-Resistant
FC-S300 Nitriding Steel Nitridation HV960 degree above No fiber added ABC/PP/PE/TPU/TPZ/PE/PS ★★ ★★
FC-S400 Double Alloys Bottom Grinding 58-60 Glass Fiber 30% or less PC/PPS/POM/PA/PBT ★★★ ★★
FC-S500 All Hard Alloys Bottom Grinding 60-62 GF 30% to 40% or less PA/LCP/PPS/PEEK/PEI bakelite,high viscosity, poor fluidity, PC white, PC transparent. ★★★★ ★★★
FC-S600 All Hard Powder Alloys Bottom Grinding 62-63 GF 30% to 50% or less PA/PA6/PPS/LCP ★★★★★ ★★★★
FC-S700 Ceramic Powder Alloys Spray 65-68 GF 50% or less V0 fireproof material, Dupont HTN, Flame retardant. ★★★★★ ★★★★★
FC-S800 Halogen Free Ceramics Spray 68-75 GF adding 50% + Halogen-free PA6T/PA9T/DSM PV4T/PA46/PA6T/ PA9T/PA10T and other highly corrosive halogen-free fiber adding plastics with 30%. ★★★★★★ ★★★★★★

Barrel comparison

Model Product name Technology Hardness Plastic ranger Scope of application Wear resisting Corrosion resistant
FC-T100 Nitride steel Nitridation HV960° degree above Common materials No fibre added Suitable for injection molding of common raw materials without fiber and flame retardant when the material temperature is lower than 280°C ★★ ★★
FC-T200 Iron-based Alloys Centrifugal casting 58-62 Less than 30% fiberglass High wear resistance,moderate corrosion,resistance,High temperature resistance (below 420°C) ★★★ ★★
FC-T300 Nickel base Centrifugal casting 61-62 Less than 50% fiberglass Suitable for halogen-free plastic 50% glass fiber,carbon fiber,mineral fiber,metal powder injection,ceramic injection and other high wear and corrosion working cinditions ★★★★ ★★★★★
FC-T700 Cobalt-based Alloys HIP 63-65 Less than 60% fiberglass Suitable for high temperature,high pressure and high speed forming such as high temperayure transparent PC,optical products,narrow frame,PEEK,PEI,etc ★★★★★ ★★★★★
FC-T800 Halogen free ceramics HIP 65-67 Less than 65% fiberglass Corrosion resistant 65% glass fiber,VO+halogen-free flame retardant ★★★★★ ★★★★★
