Enhanced Audible and Visual Smoke Detector Alarm System

Product Description

Enhance fire safety with our standalone photoelectric smoke detector from Hangzhou Xinjian Electronic Co., Ltd. Easy to install and highly sensitive, this detector is ideal for schools and factories, providing secure smoke detection for peace of mind.
Product Description Product Description: The independent photoelectric smoke detector from Hangzhou Xinjian Electronic Co., Ltd. is a high-performance sensor designed with a special structure. It utilizes proprietary chips from well-known manufacturers and photoelectric sensing components. The automatic SMT process production ensures high sensitivity, good stability, low energy consumption, and a durable and beautiful design. Easy to install, this product is ideal for fire detection and alarm in schools, factories, shopping malls, warehouses, homes, and other locations.

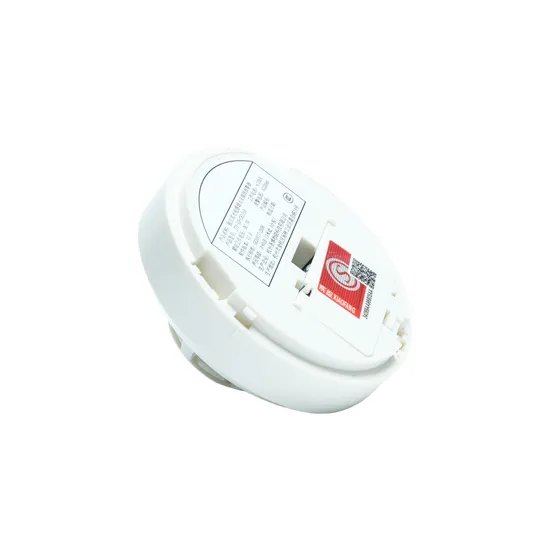

Detailed Photos Product Parameters Basic Parameter:

Model number	JTY-GD-CB1310
Operating voltage	DC 3V (2 pcs 1.5V batteries )
Work current	≤10uA
Alarm currant	≤200mA
Battery	No. 5 Mercury-free batteries 1500mAh/1.5V
Work temperature	-10---+50
Work humidity	≤95%RH(40±2)
Smoke alarm	Audible and visual alarm
Alarm Sound Level	80 dB (3 meters distance)
Battery low voltage alarm	Audible and visual alarm
Detection area	≤80 square meter
Material	Fire-proof plastic
Installation	Ceiling mounted
Dimension	Φ105*61mm
Weight	162g (with battery)

Product Dimensions:

Protection Area	Radius of Detector
Refer to Table	Refer to Table

Hangzhou Xinjian Electronic Co., Ltd. presents the Audible and Visual Smoke Detector Sensor for comprehensive fire security. This smoke detector is ideal for detecting smoke in various environments, providing both audible and visual alerts for early warning and prevention of potential fire hazards.

			Protection area A and protection radius R of a detector alarm
Types of fire detection alarms	Ground area S(square meter)	Room height H(m)	Roof slope α
			α≤15°		15°<α≤30°		α>30°
			A	R	A	R	A	R
			square meter	m	square meter	m	square meter	m
Smoke detection alarm	S≤80	H>12	80	6.7	80	7.2	80	8.0
	S>80	6<H≤12	80	6.7	100	8.0	120	9.9
		H≤6	60	5.8	80	7.2	100	9.0

Application Scenarios Matters Need Attention
Product Description This product, manufactured by Hangzhou Xinjian Electronic Co., Ltd., is designed for optimal performance in various environments. It is not suitable for installation and use in the following conditions:
Places with smoke retention under normal circumstances. Areas with high levels of dust, water fog, steam, oil fog, and other pollutants. Locations with a relative humidity exceeding 95%. Settings with ventilation speeds surpassing 5m/s. For efficient and safe operation, it is recommended to avoid the aforementioned conditions when installing and using this product.
Hangzhou Xinjian Electronic Co., Ltd. Product: Detection Alarm Maintenance: The detection alarm should be cleaned and maintained annually to ensure optimal performance.
Transportation and Storage: Follow GB/T 15464-1995 for transportation and storage guidelines.
Keep the original packaging intact and avoid severe impacts during transportation and storage.
Avoid drastic changes in ambient temperature.
Packing Instructions: Packaging: 50 pieces
Includes: 1 detector alarm, 2 expansion tubes, 2 self-tapping screws, 1 bag of desiccant, 1 manual, 1 certificate, 1 bag.
Installation Instructions
Welcome to Hangzhou Xinjian Electronic Co., Ltd. Product: Detection Alarm System Easy installation steps: Base installation: Drill two mounting holes 58mm apart from the ceiling. Use the provided expansion tube and self-tapping screws to fix the base A and B of the alarm securely.
Battery installation: Open the battery cover of the detection alarm and insert the battery following the marked positive and negative poles in the battery box. Press and hold the self-test button to ensure proper installation.
Detector and base installation: Align the detector and base, then turn the detector clockwise to complete the installation.
Experience peace of mind with our reliable detection alarm system. Trust Hangzhou Xinjian Electronic Co., Ltd. for your security needs.
