SGS/ISO Double Faced Industrial Storage Lumber Cantilever Rack
Basic Info.
Model NO.
SL-C009
Usage
Beverage, Clothing, Tools, Food, Industrial, Warehouse Rack
Material
Steel
Structure
Cantilever Rack
Type
Cantilever Rack
Mobility
Adjustable
Height
0-5m
Weight
150-500kg
Closed
Closed
Development
New Type
Serviceability
Common Use
Storing
Heavy-Duty&Long Goods&Others
Certifications
CE/SGS/As4084/ISO9001
Size
Customized
Colour
Blue/Orange/Others
Fast Delivery
Within 10 Days
Quality Warranty
3 Years
Surface Treatment
Powder Coated,Galvanized Finish
Style
Standrd I-Beam
Adjustable
75mm Per Pitch Adjustable
Feature
Corrosion Protection
Transport Package
Film Foam
Specification
customized
Trademark
SunLi
Origin
China
HS Code
7308900000
Production Capacity
20000tons/Year
Product Description

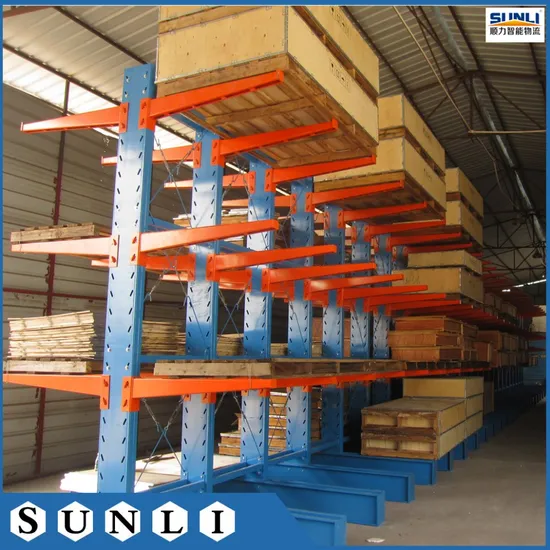

SGS/ISO Double Faced Industrial Storage Lumber Cantilever RackTechnical Description for lumber cantilever rack
| Style | long items storage, lumbers, aluminium profile storage Plywood storage, steel tubes, wooden crates storage |
| Main Components | 1, Vertical column( adjusted pitch of 140mm) 2, Column basis( W300*45/45mm) 3, Cantilever arm( Hanger 150mm) 4, connector/ "x" connector between columns |
| Components structure | 1, vertical column: C/C tubes welded 2, column basis: C/C tubes bolted 3, cantilever arm: bended plate with hanger |
| Component ranges | 1, vertical column: 300*90( 45+45mm) 2, Column basis: 300*45 |
| Thickness | Column/basis/cantilever arm: 2.0mm~4.0mm Connector: 1.5~1.8MM |
| Cantilever arm length | Max 1200MM(1000KG laden) ( the shorter of arm, the stronger loading on each arm) |
| Column length | Cantilever arm length + extra 400~500MM |
| MOQ | 2 units |
| The width between columns | 400MM~1500MM ( narrow space will make stronger loading on cantilever ) |
| Material | Made of Q235B steel |
| Lead time | 25~30days( regardless of purchase quantities) |
| Stock | We donot have any stock for cantilever rack system ( all sizes are made purpose/perosnal-designed) |
| Colour | RAL 5015( blue) + RAL 2004(Orange) |
Please inform us following information to get prompt offer for cantilever rack
+ The dimensions of single rack unit ( or palletized load descriptions)
+ The palletized payload
+ Row of racks( single row, back-to-back row or multiple rows)
+ How many palletized load within one unit
( Please refer to the Product Description on the top)
FAQ
1, What is MOQ limitation for lumber storage cantilever rack?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.
3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.
4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
